PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed
PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed
PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed

Large Image :  PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed

Product Details:
Place of Origin: China
Brand Name: Win-Win
Certification: CE
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Stretch Film+Wood Conton
Delivery Time: 45workdays
Payment Terms: T/T
Contact Now

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed

Description
Extruder: Single-Screw Die Head And Molds: PP PE PPR Pipe Extrusion
Screw Barrel Raw Material: 38crmoaia Extruder Heater: Cast Aluminum / Ceramic
Core Components:: Motor, PLC, Gearbox Warranty: 1 Year
High Light:

PPR Corrugated Pipe Making Machine

,

40m/min Corrugated Pipe Making Machine

,

Ceramic Corrugated Pipe Extruder

2023 Hot Sale High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine

High Speed PVC PE Plastic Single Double Wall Corrugated Pipe Making Machine

   SJ45 SJ50 SJ 65 high speed single wall corrugated pipe production line pp pe pvc pipe manufacturing machine High Speed 20-40mm Plastic Single Wall Corrugated Pipe Extrusion Machine Line Cheap Corrugated Pipe Machine Single Wall Corrugated Hose Wire Bushing Corrugated Pipe Extrusion Machinery

WinWin plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to achieve water circulating cooling for the products, which ensures high-speed moulding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are broadly used as wires of up-market cars, shisha hookah hose, electrical conduit, etc. The production speed can up to 20-40m/min.

Corrugated pipe

Applications :

providing automotive air conditioning refrigerant pipe ,automotive wiring harness and other components shock,anti-friction,compression protection,which also be used in the field of machinery manufacturing ,electrical insulation, lighting equipment,automobile manufacturing,aerospace equipment,subway,train,automation and other industries.

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 0
PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 1

  More Details about Our Machine:

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 2

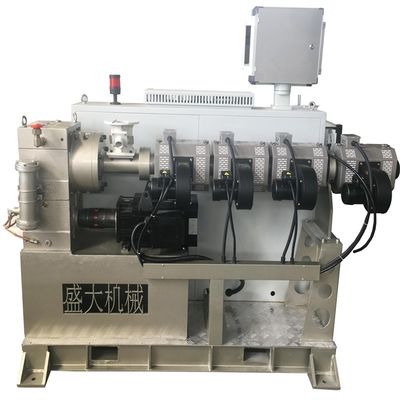

Ceramic Band Heaters provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. These band heaters are constructed with a stainless steel shroud enclosing high quality ceramic knuckles through which run coiled high temperature nickel-chromium element wire.

Overstandard quality

1.Lower Operating Cost

2.Safe

3.Operator Comfort

4.Operator Comfort

5.Longer Heater Life

6.Higher Operating Temperatures

7.Flexible

8.Dual Heat Transfer

New designed Ceramatic energy saving heater ring can save 30% electricity.

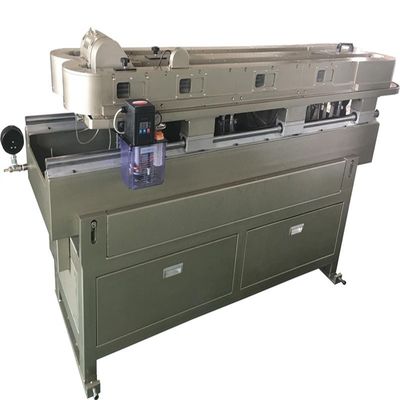

Corrugated Pipe Forming Machine

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 3

Production speed: 20-30m/min
Plate material: 38CrMoAlA

High surface hardness, wear resistance, fatigue strength, heat resistance and corrosion resistance. Utilizing nitriding technology and high diamensional precision after treatment. The service life is double than 45#steel .
Cooling method: water cooling
The purple part of the plate is perforated for water circulation, which can ensure that the forming machine and mould are always keeping in low temperature, the pipe inner side more smooth, increase the production speed and product quality.
Forming machine adjustment:
manual control left and right,
Electric control up and down.

PP PE corrugated pipe machine: can carve customer's logo, can choose double cavity or three cavity in one set of mould.

When changing the size, just need to move up and down the forming machine, no need to move out all set of mould, which can save a lot of time for customer.
Mould is made of 38CrMoAlA, same material as screw barrel, high quality and longer working life



The Plastic Extruder Mouth Mould: new designed core bar and mouth mould can combine properly.

When changing the size, there is no need to change the core bar and mouth mould seperately like the old design.

Which can save more than 1h for the clean of the waste material.

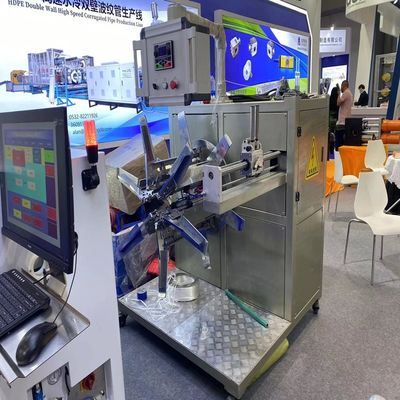

Double Position Winder

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 4

Specification

NO
Name
Unit
Qty
1
Vacuum Feeder and Hopper Dryer
Set
1
2
SJ-65/30 Single Screw Extruder
Set
1
3
Corrugated pipe die head
Set
1
4
Core bar and mouth mould
Set
1
5
pipe forming Mould(12-32mm)
Set
1
6
Corrugated pipe forming machine
Set
1
7
Double station Winding machine
Set
1
8
Free spare parts
Pcs
19
9
PLC control system
Set
1





PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 5

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 6

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 7

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 8

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 9

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 10

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 11

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 12

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 13

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 14PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 15PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed 16



Alice Zheng



Tel:86-13791964391(Wechat/skype/whatsapp)



E-mail: alice@qdwinwin.cn



Web1: www.qdwinwin.cn

Web2: www.corrugatedpipeextrusionline.com



Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
