Product Details:
|
| Voltage: | 380V 50Hz 3phase(Customized) | Automatic Grade: | Automatic |
|---|---|---|---|
| Screw Design: | Conical Twin Screw Extruder | Plastic Processed: | PVC |
| Contactor: | Customized | Inverter: | Customized |
| High Light: | Cable Trunking Tray Making Machine,380V Plastic Profile Machine,PVC Cable Trunking Tray Machine |
||
PVC Cable Tray Extruder Line,CableTrunking Making Machine

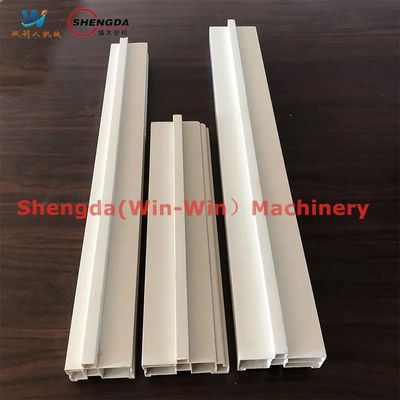

Application product PVC Cable Trunking
1. Self-fire extinguishing, non-flammable.
2. It is inpenetrable by insects and termites, and won't rot or rust.
3. Resistance to weather/ special chemicals, waterproof/washable.
4. The excellent rigid and superior impacted surface is without any peeling.
5. Natural wood grain: showing authentic wood srtucture and artistic sense.
6. Easy to be cut, drilled, nailed, sawet, and riveted. DIY is all right.
7. Quick maintenance and no need of painting.
8. The simple and fast installation can save a lot of time and manpower cost.
Production Flow:

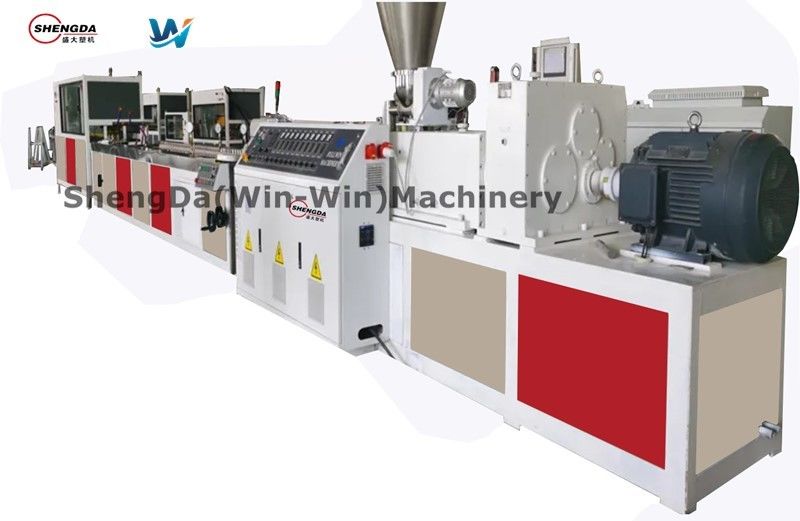

Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker
Equipment Features:
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Machine list:
| Feeder | • To feed material into extruder; |
| Extruder | •World famous brand electrical component: Siemens, Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile |

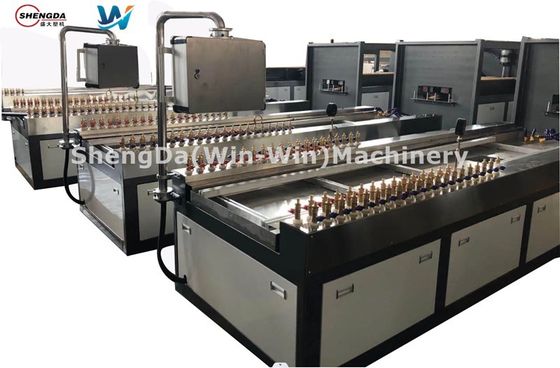

| Calibration table | • Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation |

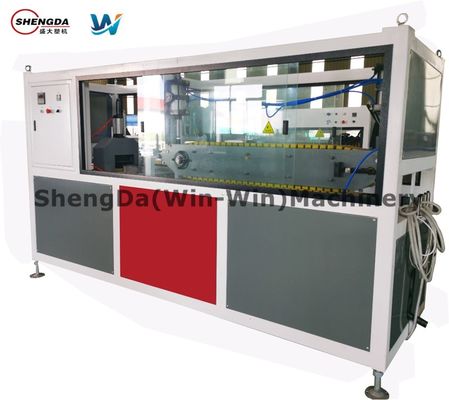

| Haul off | • Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material |
| Cutter | • Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control |

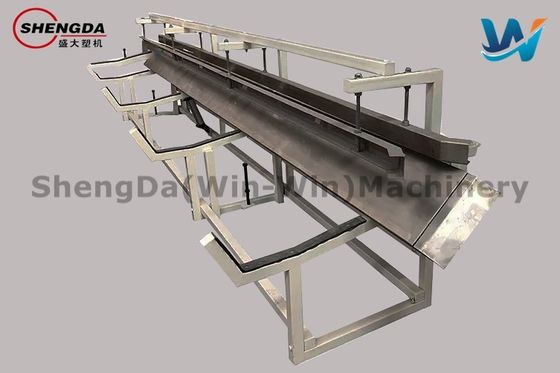

| Stacker | • Stainless steel304 as touching material • Discharge driving by air cylinder |
| Hot stamping machine | • Decorative pattern and film protection of product surface |
Technical information:
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. |
||
| For more technical information please contact us by email. | |||
