Three-Layer HDPE Co-Extrusion Water Supply HDPE Pipe Extrusion Line Making Machine
We are very professional in producing the HDPE/PE pipe production line. It developed by Win Win company is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.
Features of Pipe Machiner:
1- 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
2- The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3- Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4- Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5- High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8- Chip-free cutter ensuing flat and smooth cutting surface of pipe.
We have stock in our factory, you can come to visit at any time.
The whole production line consists of the following seven parts:
|
|
|
|
|
|
Single screw extruder with automatic feeding system
|
|
|
|
Mould
|
|
|
|
|
|
| 4 |
Water cooling tank |
1set |
|
|
|
|
|
|
|
|
|
|
|
|
The pipe produced by our machine has the moderate rigidity&strength, good flexibility, creep resistant,environmental stress crack resistance and favorable hot melting property. So it is widely used in the fields of water supply, drainage, gas supply, etc.
| Extruder Model |
Pipe Diameter
(mm) |
Production Capacity
(kg/h) |
Total Power
(kw/h) |
| SJ50 |
16~63 |
100~150 |
75 |
| SJ65 |
75~160 |
300~350 |
160 |
| SJ75 |
200~400 |
600~700 |
280 |
| SJ90 |
450~630 |
800~850 |
350 |
| SJ120 |
710~1200 |
1200~1300 |
700 |
| SJ150 |
1200~2000 |
1400~1500 |
1000 |
Details Images

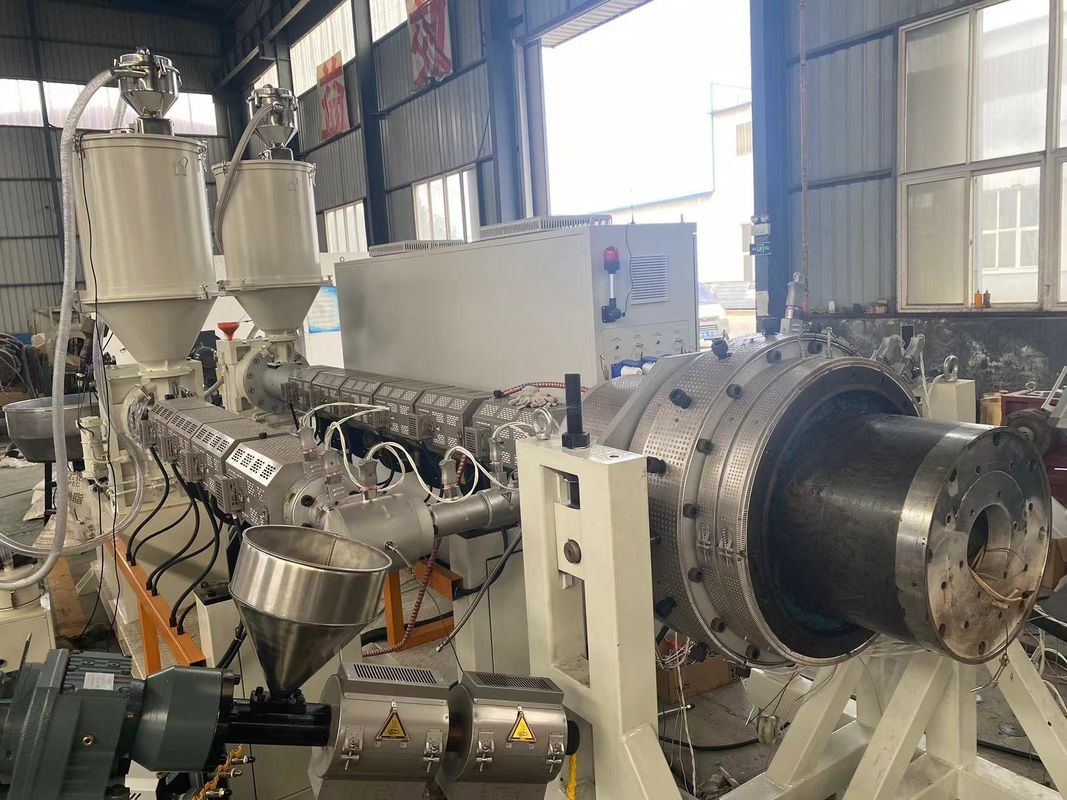

1.Single screw extruder with automatic feeding system:
According to the requirements of different diameters, different wall thicknesses and different output of pipes,
we have many models of special single screw extruders to choose from. It adopts a specially designed screw
structure, which can evenly heat, plasticize PE granules and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Material of screw and barrel: 38CrMoAlA.
(6) Heating method: Ceramic or cast aluminum heating
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished,
which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed
is hight and the surface of the pipe is good.
(1) Material: 40GR
(2) Size: Customized

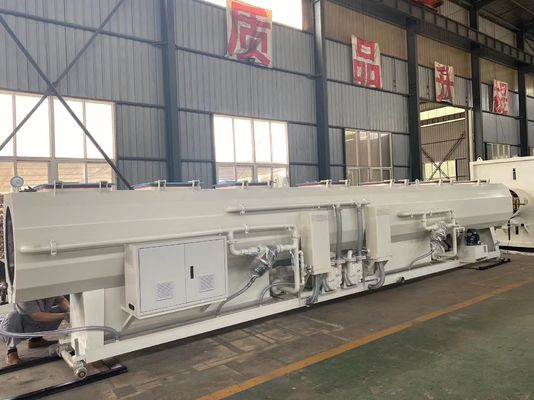

3.Calibrating and cooling tank:
The calibrating and cooling tank can calibrate and cool the pipe from the mould.
(1) Vacuum pump power : 4 kw
(2) Stainless steel material: 1Cr18NiTi
(3) Diameter of tank : Customized
(4) Length of tank: 6 m
4.Water cooling tank
(1) Water pump power: 2.2 kw*2
(2) Spray cooling: ABS nozzle; Stainless steel pipe
(3) Method: Enforced spraying
(4) Length of tank: 6 m
The haul-off machine can transport pipe to cutting machine.
(1) Hauling power: 1.5 kw
(2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm
6.Cutting machine:
The special cutting machine for pipe adopts rotary clamping device, is suitable for different pipe diameters,
avoids the trouble of frequently changing clamping device.
(1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control
It is used to hold pipes and can unload pipes automatically.
(1) Length: 6000 mm
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
Our Advantages
- Always upgrade new technology
We are continously to making development on new technology and new designing always. this keep our machine technolgy level standing in front of of the world level.
We focus machine quality , energy saving , operating easy and convenient maintenance.
- We consider different buyers' different request, try our best to meet your satisfy!
Multi-functions
Our machine can make steel wire passing hose on line when producing the hose.
Our machine can make 1-9 pieces electric cable passing hose when producing the hose.
Our machine can make plastic pipe passing the hose on line when producing the hose
We also have vacuum type machine, which can make special shape hose , and high speed producing.
- Strong machine using long life
Our machine total weight is higher than other manufacturer 30% , because we are using very strong material.
Our machine use high quality famous brand electric parts like SIEMENS, OMRON, ABB
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
