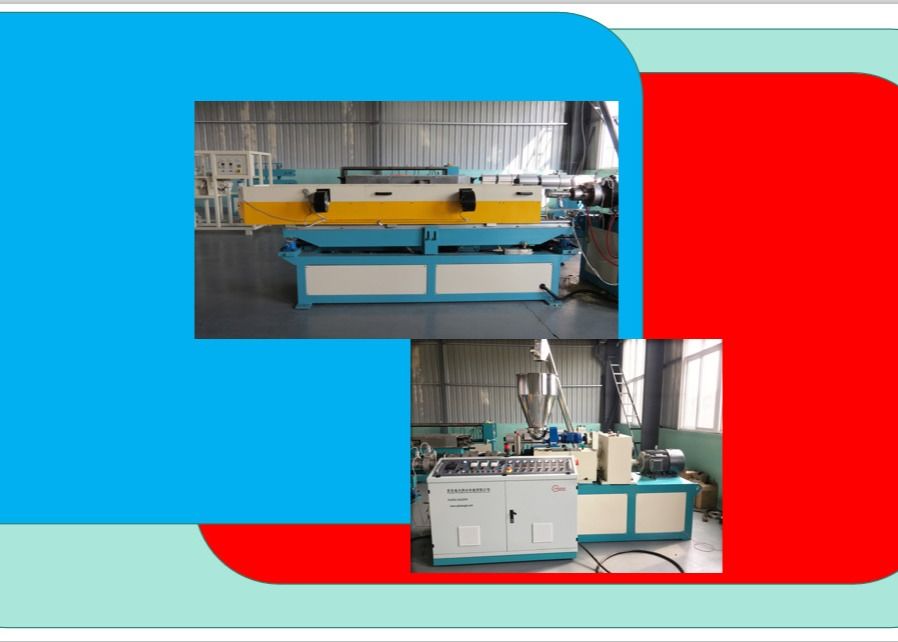

75mm PP Double Pipe Extrusion Production Line

Flexible Pipe Machine/ Double-Plastic Fiber Braided Insulation Pipe Extrusion Making Machine

The composition of the production line is as follows:

Loading dryer

Extruder

Extruder head

Molding machine

Winder

Wire feeder

The Flexible Pipe Machine/ Double-Plastic Fiber Braided Insulation Pipe Extrusion Making Machine carefully developed by Qingdao Win Win Machinery Co., Ltd. can continuously produce PE, PP, EVA, PVC and other corrugated pipes. The equipment adopts imported Siemens electrical parts, Changzhou heavy industry technology reducer, which is cooled by gear transmission module, template water string, module and product air cooling; The head adopts a special spiral process design, which ensures the wear-resistant strength of the head after desalination.

The material extrusion process is stable, high-speed and smooth. Our company is able to design the forming mould according to the special requirements of customers, so that the bellows can be produced with fast forming speed, uniform corrugated shape and consistent joints.

Our company adopts bimetal screw barrel and desalination treatment to ensure the long-term working stability of screw, good plasticization of raw materials, smooth appearance of products and high compressive strength. The pipes are mainly used for wires, cables, threading pipes, ventilation pipes and drainage pipes.

Features of single wall corrugated pipe extruder: production of large diameter single wall corrugated pipe. The corrugated pipe products with smooth inside and outside and even corrugation can be produced by the corresponding mould at one time. Closed structure, all water cooling, molding machine track length to ensure the production speed and product molding stable and even ripple.

Module: reasonable structure design, air cooling, using aluminum alloy and hard steel as raw materials, a variety of materials for customers to choose, after strict material desalination treatment and CNC finishing, thus ensuring the hardness of the molding module and the stability of the module molding, easy to replace.

Coiler: torque motor, single station / double station coiler.

Basic description

The Flexible Pipe Machine/ Double-Plastic Fiber Braided Insulation Pipe Extrusion Making Machine is mainly used for the production of sewage pipes and cable pipes. PVC pipe is characterized by light weight, convenient installation, good system sealing and versatility.

Production process: mixing raw materials - extrusion by Twin-screw Extruder - vacuum forming - cooling - chip free cutting - unloading.

Characteristic

PVC plastic sewer pipes for installation of sewers and drainage systems replace metal pipes (cast iron pipes). The corrosion resistance of the material is better than that of cast iron, and the portability of the pipe itself and the convenience of installation work ensure that the plastic pipe is widely used in any complex drainage and sewer system in various fields.

With high performance and stable terminal product quality, the line is the first-class equipment in the plastic industry.

Composition of production line

Automatic charging machinery

Control system

Double screw extruder

Die head

Vacuum Calibrating Cooling Tank

Traction device

Cut off device

Overturning table

SWP360 pulverizer

300 / 6000m3 flaring machine
