Product Details:
|
| Type: | Pipe Extruder | Assembly Structure: | Integral Type Extruder |
|---|---|---|---|
| Inverter: | ABB | Condition: | New |
| Temperature Control: | Omron | Main Electrics: | Siemens / Schneider |
| High Light: | Spiral Integral Type Extruder,100kw Corrugated Pipe Extrusion Line,300kg/h Corrugated Pipe Extrusion Line |
||

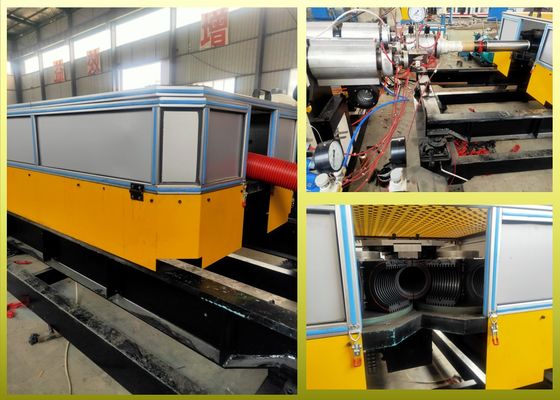

SW-45/90 High-Speed Spiral Double-Wall Corrugated Pipes Extrusion Line
SW-45/90 High-Speed Spiral Double-Wall Corrugated Pipes Extrusion Line is a kind of special equipment for extruding of PVC resin/powder mixture. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC pipe material, profiled material, plate material, sliced material, board material, roof tile material, bar material, granulation/pelletizing and wood PVC, wood PE material.
The SW-45/90 High-Speed Spiral Double-Wall Corrugated Pipes Extrusion Line screw has applied oil cooling system. The barrel is cooled by special wind cooling system., which applies special computer control. According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The SW-45/90 High-Speed Spiral Double-Wall Corrugated Pipes Extrusion Line screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
The electrical system has mainly applied imported brands, like Siemens, ABB, Omron, Schneider, Fuji, etc. It has the multiple alarm system; there are few problems which can be easily eliminated.
The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be +/-1ºC
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
