Product Details:
|
| Type: | Pipe Extruder | Assembly Structure: | Integral Type Extruder |
|---|---|---|---|
| Inverter: | ABB | Condition: | New |
| Temperatyre Contril: | Omron | I Electrics: | Siemens / Schneider |
| High Light: | 12m/Min Corrugated Pipe Extrusion Line,65kw Corrugated Pipe Extrusion Line,40mm Corrugated Pipe Extrusion Line |
||
Water Gas Double Wall Corrugated Pipe Extrusion Line 12m/Min/ Plastic Pipe Making Machine
Water Gas Double Wall Corrugated Pipe Extrusion Line 12m/Min/ Plastic Pipe Making Machine adopts a strong cooling corrugated forming system combining water cooling and air cooling, which can ensure a high production speed in continuous production. The advanced programmable lubrication system reduces the wear of the forming module to the minimum, greatly prolongs the service life, ensures the operation accuracy and ensures the stable quality of the pipe.
| Modle | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) | Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
Performance characteristics of Water Gas Double Wall Corrugated Pipe Extrusion Line 12m/Min/ Plastic Pipe Making Machine of Qingdao Win Win Machinery Co., Ltd.: The molding machine adopts the overall horizontal structure, covering a small area, and the ground does not need to be the foundation. The working platform has horizontal, vertical and horizontal adjustment mechanisms.
Water Gas Double Wall Corrugated Pipe Extrusion Line 12m/Min/ Plastic Pipe Making Machine, slotting barrel, ceramic heating ring, and the inner and outer layers of the corrugated pipe are separately fed by two extruders, which can realize the production of pipes with different raw materials for the inner and outer layers and ensure the high-efficiency extrusion;
The double-layer on-line expanding of extruder head is designed as double helix coextrusion feed, which is extruded separately through the double-layer die with adjustable gap.

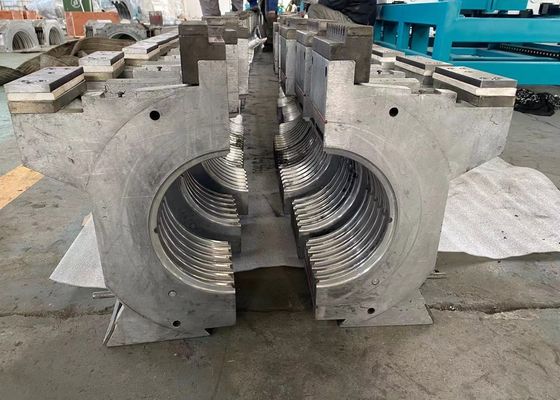

The die (air-cooled + water-cooled) is made of special aluminum alloy, which has the advantages of light weight, high strength, good wear resistance and small coefficient of thermal expansion.
Double wall corrugated pipe production line adopts professional PLC computer control system, 15 "large screen color touch human-machine interface, high degree of automation, reliable operation and simple operation;
The On-line UPS battery ensures that the workbench can return automatically in case of sudden power failure and other faults, so as to separate the module from the water jacket.
Water Gas Double Wall Corrugated Pipe Extrusion Line 12m/Min Plastic Pipe Making Machine has passed CE safety certification organized by China Quality Certification Center
The selection of Win Win people's equipment is equal to the success of selection. Our company has a professional technical team, strong after-sales guarantee, one-year equipment warranty, fast after-sales response, excellent service, complete accessories, and the company sends professional technicians to provide on-site service.
