Product Details:
|
| Layers: | Single Layer Or Multi Layer | Speed: | Normal Or High Speed |
|---|---|---|---|
| Production: | Stable And High Speed | Control: | PLC HMI |
| Screw Channel Structure: | Deep Screw | Automation: | Automatic |
| High Light: | Conical Double Pipe Extrusion Machine,Twin Screw Flat Pipe Extrusion Machine,Conical twin screw pvc pipe machine |
||
250-300kg/h Conical Twin Screw PVC Flat Pipe Production Line
PVC is currently used in a wide spectrum of piping applications, all helping to meet modern infrastructure needs.
| Type | Diameter mm | Extruder | Capacity(kg/h) | Power(kW) |
| PVC32(Quadruple) | ∅16-32 | SJZ65/132 | 250-300 | 104 |
| PVC63 (dual) | ∅16-63 | SJZ65/132 | 250-300 | 105 |
| PVC110(dual) | ∅50-110 | SJZ80/173 | 450-500 | 165 |
| PVC160 | ∅63-160 | SJZ65/132 | 250-300 | 100 |
| PVC250 | ∅75-250 | SJZ80/156 | 300-400 | 110 |
| PVC315 | ∅160-315 | SJZ80/156 | 300-400 | 180 |
This pipe production line adopts advanced technology of Europe, it is a new research achievement of energy-saving production line, which is suitable for high speed extrusion of PVC pipe. Compared with common production line, the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower, but also improving efficiency.
This production line has nice appearance, higher automatic degree, production reliable and stable.
250-300kg/h Conical Twin Screw PVC Flat Pipe Production Line Overview
According to different diameter, different production requirements, a variety of special specifications of PVC twin-screw extrude to used. The special designed screw structure, uniform plasticizing, high output.
PVC extrusion die head used high quality alloy steel manufacturing, channel surface with brightness and anti-corrosive. Wide flow channel design to ensure the retention time of the melt in the die head and the largest extrusion production.

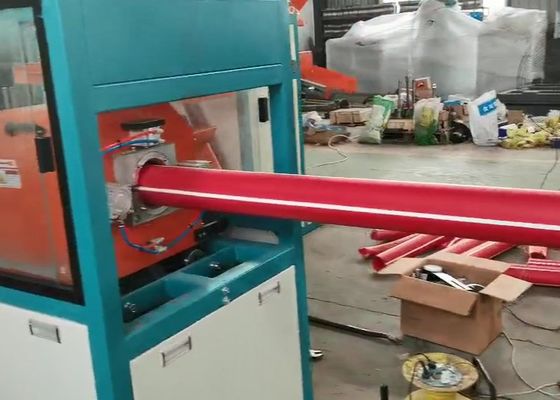

In view of the large diameter PVC pipe, the vacuum tank used double vacuum chamber structure design, equipped with a circular plate, making pipe roundness and forming better. Haul-off unit used 2 to 10 caterpillars, mating with different specifications of the planetary cuttingmachine, adapt to all PVC dimensions pipe production. Optional online belling machine
In the production of small diameter pipe and requirements under the condition of high output, especially shows the advantages of using dual-strand extrusion. The characteristics of using dual-strand downstream equipment is with two sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can even produce different diameter of the pipe at the same time.
Four strand extrusion line is suitable for the <=32 mm pipe with high-speed production, unilateral pipe speed up to 25 m/min. This extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate, educe the technical requirements of the operation of operating workers. And effectively save the workshop space.
