Product Details:
|
| Pipe Diameter: | 20-63mm | Screw No.: | Single-screw |
|---|---|---|---|
| Motor Power: | 37 Kw | Automation: | Automatic |
| Condition: | New | Warranty: | 1 Year |
| High Light: | PE Plastic Pipe Production Line,HDPE Plastic Pipe Production Line,HDPE Tube Extrusion Machine |
||

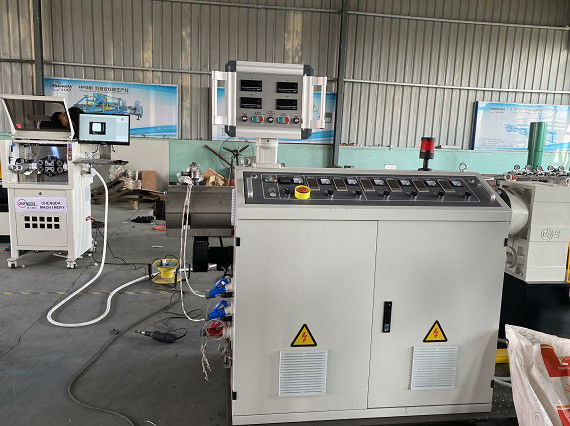

High Efficiency HDPE/PE Plastic Pipe/Tube Extrusion Line Production Line
| Model | Pipe range(mm) | Extruder model | Extruder motor power(kw) | Max.Output(kg/h) |
| SJ-63 | Φ20-63 | BRD60/38 | 90 | 450 |
| SJ-110 | Φ20-110 | BRD60/38 | 110 | 500 |
| SJ-160 | Φ40-160 | BRD60/38 | 110 | 500 |
| SJ-250 | Φ50-250 | BRD75/38 | 160 | 680 |
High Efficiency HDPE/PE Plastic Pipe/Tube Extrusion Line Production Line Features:
a-The optimum spiral bush highly improves the output of extruder
b-Accurate temperature control system ensures material melting performance
c-Unique screw design achieves better plasticizing and high quality products
d-Precisely designed gearbox with a high torsion guarantees stable running
e-H sharp frame to decrease vibrating of extruder
f-Advanced PLC operation system realizes synchronization and high quality products
g-Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks

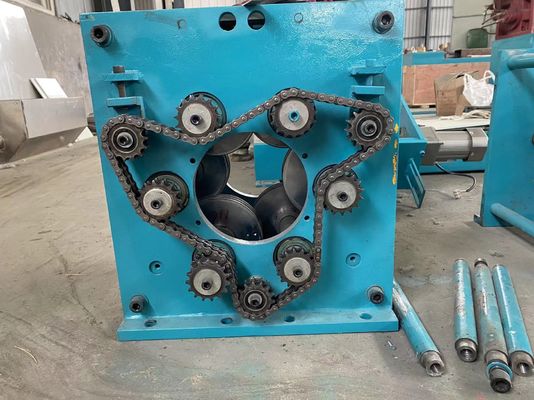

h-Offer stable haul-off unit with 2-12 caterpillars
i-Provide saw &chip free cutting options
j-Low energy consumption, excellent performance, and easy maintenance
