Product Details:
|
| Pipe Diameter: | 16-63mm | Screw No.: | Twin-screw |
|---|---|---|---|
| Motor Power: | 37 Kw | Vacuum Tank Length(m): | 6 |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | Plastic PVC Pipe Extrusion Production Line,Water Supply Drainage Pipe Extrusion Equipment,63mm Plastic PVC Pipe Production Line |
||
16-63mm Automatic Water Supply Drainage Plastic PVC Pipe Extrusion Production Line
1. Performance & Advantages:
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

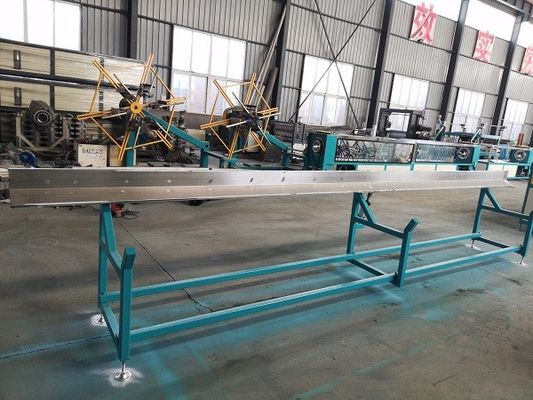

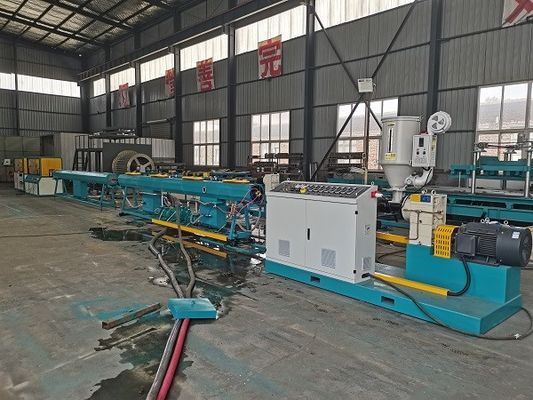

This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
We also can offer some auxiliary machine about the pipe extrusion line.
With its wide range including various technical solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.
PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm.
2. Technical parameters of PVC pipe extrusion line
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Pipe dia. (mm) | 16-63 | 75-160 | 125-250 | 180-315 | 200-450 | 355-630 |
| Vacuum tank length(m) | 6 | 6 | 6 | 9 | 9 | 9 |
| Pressure of vacuum | 0.03-0.80 | |||||
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Production Line Length(m) |
20 | 22 | 30 | 30 | 36 | 42 |
