Product Details:
|
Plastic Type: | PE PP PVC | Diameter Of Pipe: | 250mm-630mm |
---|---|---|---|
Screw: | Single-Screw | Heater: | Ceramic Heater |
Screw Barrel Material: | 38crmoala | Inverter: | ABB |
Motor: | Siemens | Guarantee: | 1 Year |
High Light: | 630mm Single Screw Extruder Machine,Oil Hose Single Screw Extruder Machine,250mm single wall plastic extrusion machine |

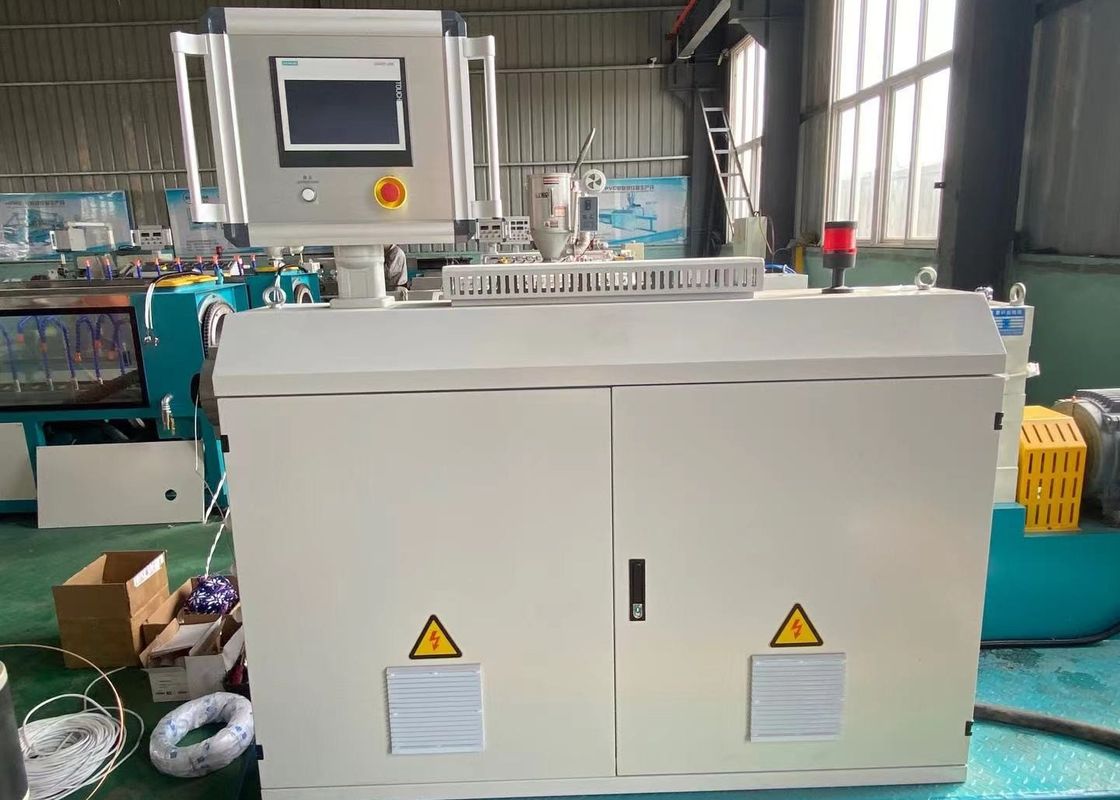

250-630mm Water Gas Oil Supply Hose Single Screw Extruder Machine
Main Technical Parameter:
Machine model |
Pipe diameter | Vacuum Calibration Tank | Spray Cooling Tank | Haul-off unit | cutter | ||||
Vacuum pump | Water pump | Length(mm) | Water pump |
Length(mm) | Caterpillar Quantity | Motor | Cutting type | ||
HDPE-630 | Φ250mm-φ630mm | 7.5kw*2 | 7.5kw*2 | 6000mm | 7.5kw*1 | 6000mm | 6 | 1.1kw*6 | Planetary cutter |
Application of 250-630mm Water Gas Oil Supply Hose Single Screw Extruder Machine:
Agricultural Irrigation water supply&Sweage drainage pipe&Discharge system&Gas supplly system&Architectural water supply.
Production Flow of Pipe Production Line:
Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →Cutter →Stacker or Coiler
Features of 250-630mm Water Gas Oil Supply Hose Single Screw Extruder Machine:
1- 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
2- The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3- Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4- Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5- High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;

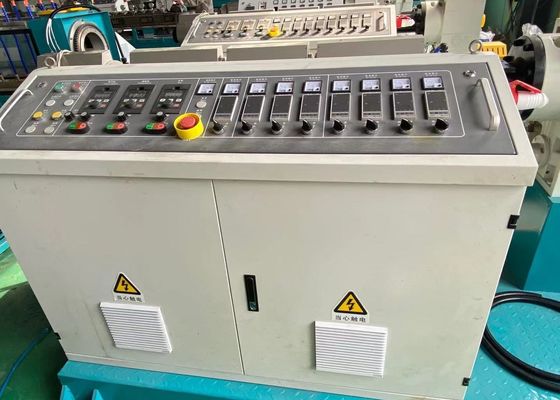

7- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8- Chip-free cutter ensuing flat and smooth cutting surface of pipe.
