Product Details:
|
| Haul Off: | Servo Motor | Exhaust: | Exhaust |
|---|---|---|---|
| Color: | Customizable | Inverter: | ABB |
| Contacter: | Schneider | Contacting Machine: | Siemens |
| High Light: | PPR Single Screw Extruder,Plastic Pipe Single Screw Extruder,SJ65/33 Plastic Pipe Making Machine |
||

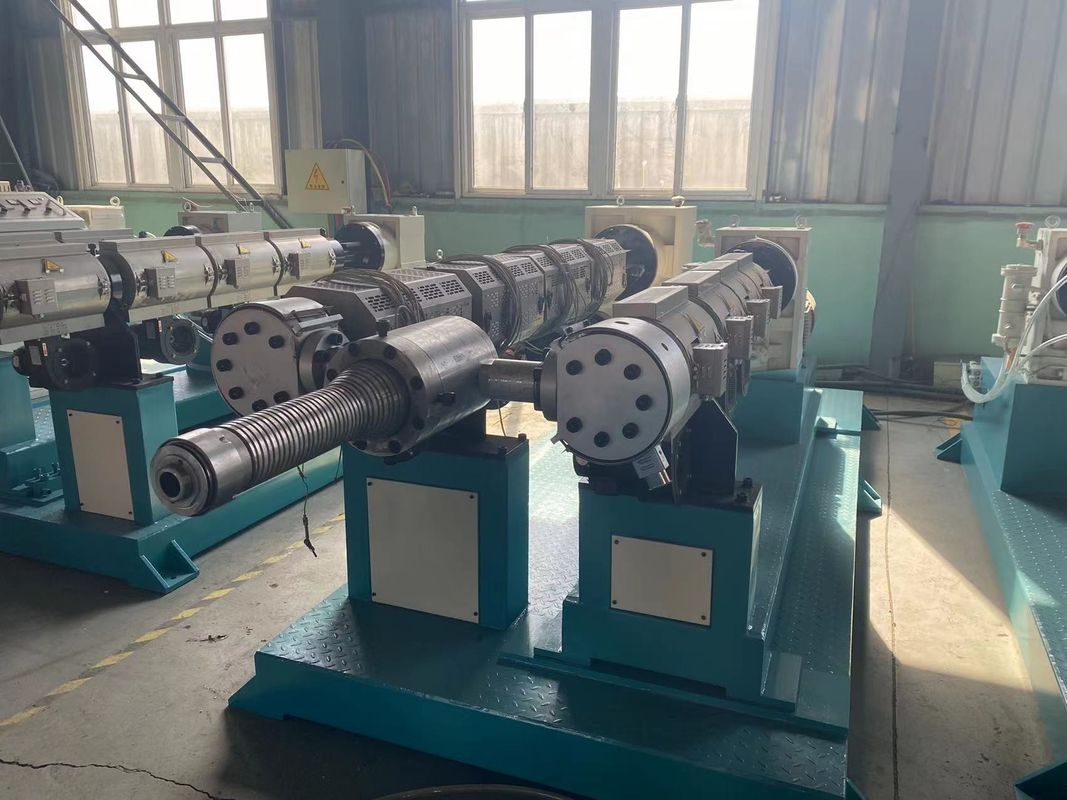

SJ65/33 PP PE PPR High Efficiency Single Screw Extruder Plastic Pipe Making Machine
| Technical parameters of high efficiency single screw extruder: | ||||||
| Item/Model | SJ45/33 | SJ65/33 | SJ75/33 | SJ90/33 | SJ120/33 | SJ150/33 |
| Screw dia(mm) | 45 | 65 | 75 | 90 | 120 | 150 |
| Driving motor (kw) | 37 | 75 | 110 | 160 | 280 | 400 |
| Output (kg/h) | 150 | 300 | 450 | 600 | 1000 | 1300 |
| L/D ratio | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
| Torque | 1600 | 3600 | 6300 | 11200 | 25000 | 45000 |
Description of SJ65/33 PP PE PPR High Efficiency Single Screw Extruder Plastic Pipe Making Machine:
SJ Single Screw Extruder is mainly used to process PP, PE, PP-R, ABS, PVC, PET and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets, roof tile, granules and other plastic products. It has the advantage of simple production technological process, high output, stable quality and low cost.
Characteristics: Screw optimizes composing separate type screw and mixing parts. Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together:
It's optimized during material melting process. Thus get more extrusion throughput.
It is realized extruding melt material in low temperature.
Cutting function is caused through separate clearance and it makes material equal well.
It's controlled during melt plasticization process. Therefore only granule smaller than separate clearance can enter melt channel.
Wide manufacture range for different materials. It's suitable for all kind of polyolefin materials and specially for material for LD/HDPE, PP, ABS.
Feature of high efficiency single screw extruder:
1. Adopt the single screw extruder, and mainly used in extruding PE, PP, ABS, PS, PC, and so on
2. The extruder using the special designed single screw making the product forming well.
3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.
4. Barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.
5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot.
6. The control panel: AC/DC motor ,SIMENS contactor
