Product Details:
|
| Plastic Processed: | PET | Max.Capacity: | 800kg/H |
|---|---|---|---|
| Screw: | Twin-Screw | Engagement System: | Intermeshing |
| Screw Channel Structure: | Deep Screw | After-sales Service: Champion Warranty: 12 Months Type: Sheet Extruder Plastic Processed: Pet Produc: | Extrusion Molding Machine |
| High Light: | 800kg/H Plastic Sheet Extruding Machine,Twin Screw Plastic Sheet Extruding Machine,800kg/H Film Extrusion Production Line |
||

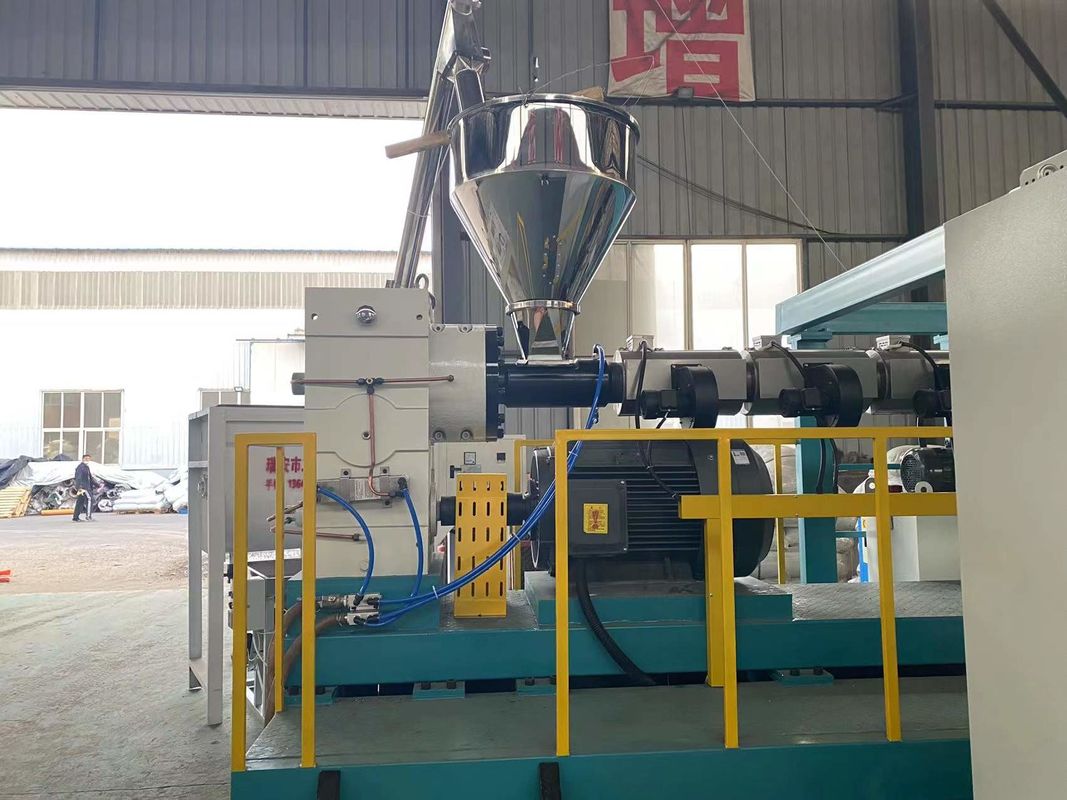

800kg/H Plastic Sheet Extruding Machine / Film Extrusion Production Line
Main Technical Parameter:
| 1 | Model | PPSJ-100 | PPSJ-120 | PPSJ-150 |
| 2 | Industry Voltage | 380V, 50HZ (3-Phase, 4-Wires) | ||
| 3 | Suitable Material | PP, PS | PP, PS | PP, PS |
| 4 | Main Extruder Dia. | 100mm | 120mm | 150mm |
| 5 | Screw L/D | 33:1 | 33:1 | 33:1 |
| 6 | Max. Capacity (PS) | 300kg/h | 520kg/h | 800kg/h |
| 7 | Extruding Motor Power | 75kw | 132kw | 200kw |
| 8 | Max. Sheet Width | 750mm | 750mm | 850mm |
| 9 | Valid T-die Width | 850mm | 850mm | 1000mm |
| 10 | Sheet Thickness Range | 0.3-0.2mm | 0.3-2.5mm | 0.4-2.5mm |
| 11 | Roller Diameter | 400X1000mm | 500X1000mm | 600X1200mm |
| 12 | Machine Installed Power | 160kw | 220kw | 350kw |
| 13 | Overall Dimension | 14X2.5X4m | 15X3X4.5m | 64X3.5X4.8m |
Feature OF 800kg/H Plastic Sheet Extruding Machine / Film Extrusion Production Line:

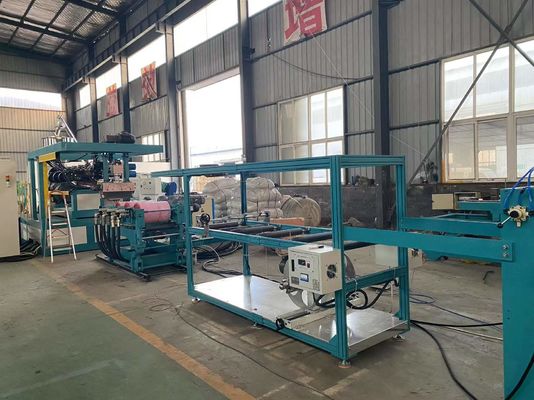

1. The plastic ps sheet extruder unit is a combination of Extruder, calender, haul-off unit, winder (including waste sheet winder) and electric control cabinet.
2. The main parts, such as screw, barrel, screen exchanger, adopt superior alloy steeel(38CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
3. The screw adopts big L/D (length and diameter) ratio, equal plasticization and high plasticizing capability.
4. Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is conventient and improve the production efficiency.
5. The Calender, haul off unit and winder adopt integration design, nice appearance, convenient and fast installation and adjustment.
6. The extruder adopts square steel, to make sure the machine works stably in high speed, the motor is connected with gear box directly, Improve production efficiency.
7.Usage:It's designed to produce monolayer PP/PS/PE plastic sheet, which is used for making disposable water drinking cups, ice-cream cups, yoghurt cups , lids, dishes, plates and etc.
