Product Details:
|
| Plastic Processed: | PET | Screw: | Twin-Screw |
|---|---|---|---|
| Max. Sheet Width: | 850mm | Valid T-Die Width: | 1000mm |
| Screw Channel Structure: | Deep Screw | After-sales Service: Champion Warranty: 12 Months Type: Sheet Extruder Plastic Processed: Pet Produc: | Extrusion Molding Machine |
| High Light: | PET Plastic Sheet Extrusion Line,850mm Plastic Sheet Extrusion Line,850mm PP Sheet Making Machine |
||

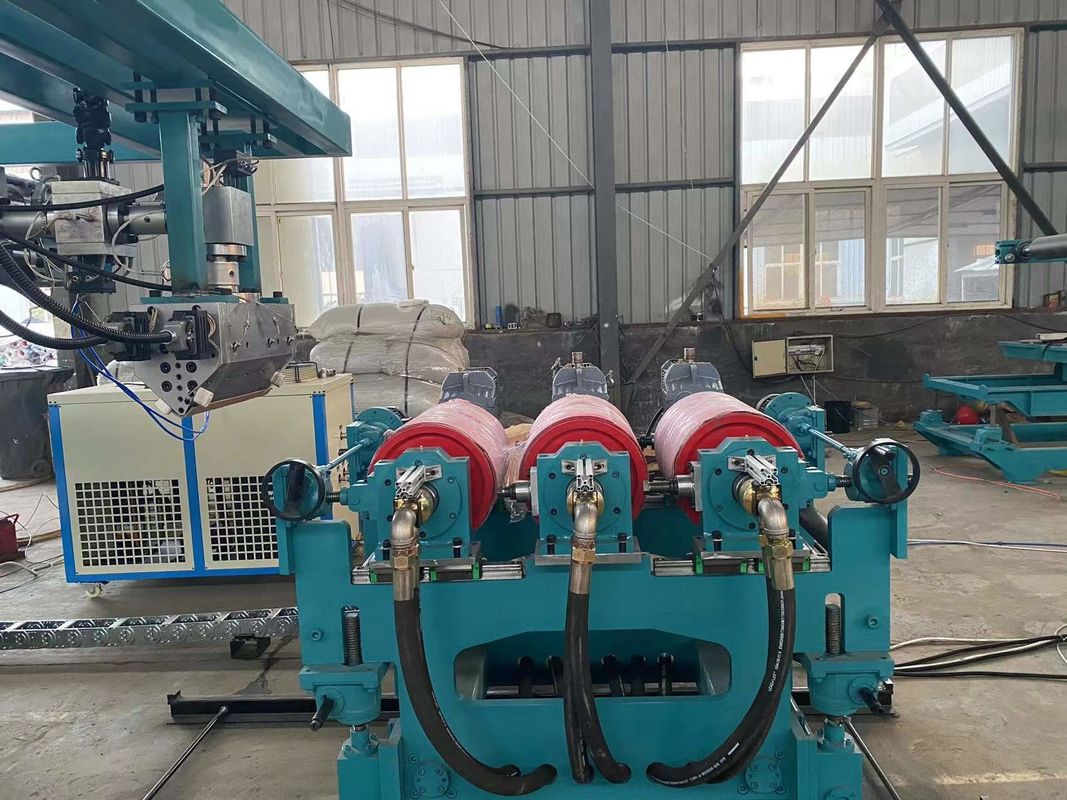

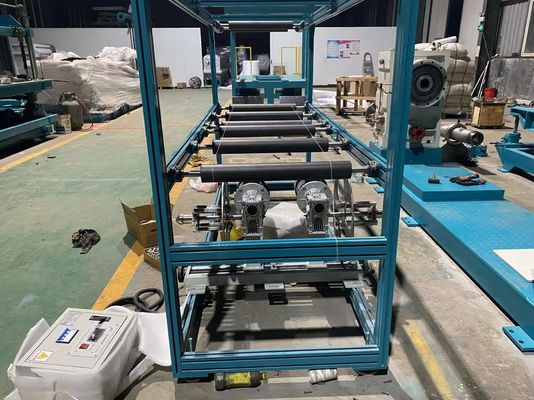

850mm Plastic PET PP Sheet Extrusion Production Line Making Machine
Specifications:
| Type | SK-150 | SK-170 | SK-180 | SK-80 |
| Raw Material | PP,PE,ABS,PC | PP,PE,ABS,PC | PP,PE,ABS,PC | PVC |
| Width | 1220-1500mm | 1200-1500mm | 1500-2000mm | 1220mm |
| Thickness | 3-30mm | 3-30mm | 3-30mm | 3-30 |
| Extruder Type | SJ150x35 | SJ170x35 | SJ180x35 | SJSZ80x156 |
| Outout | 500kg/h | 700Kg/h | 800kg | 450kg/h |
Introduction of the 850mm Plastic PET PP Sheet Extrusion Production Line Making Machine
1.The whole line of the machine adopts Siemens PLC online control, which is convenient and simple to operate.
2.Single screw extruder and special screw are used to ensure the melting effect of plastic.
3.The hydraulic screen changer provides an excellent seal effect to ensure non-stop work.
4.The melt pump ensures the smooth extrusion of the plastic and the uniformity of the sheet.
5.Use high-precision molds to ensure the uniformity of extruded plastics.
6.Three-roll calendar provides good thermostat
7.The online trimming and recycling device avoids waste of side material, and can be recycled and crushed to the feeding hopper online to realize real-time recycling and production.
8.The oven device ensures that the sheet does not curl.
9.The traction system is equipped with a meter counter to promptly remind the rewinding and changing reels.
10.Double-station automatic rewinding is adopted.
Features of the 850mm Plastic PET PP Sheet Extrusion Production Line Making Machine
Applications of the 850mm Plastic PET PP Sheet Extrusion Production Line Making Machine
*Cups & lids for Dairy Products, Yoghurt, Milk & Ice Creams
*Drinking cups / glasses
*Containers for fruit, vegetables & sweet packing
*Meal trays for microwave ovens
*Flower Pots, transportation trays & Agricultural Products
