Product Details:
|
| Condition: | New | Screw No.: | Double-screw |
|---|---|---|---|
| Automation: | Automatic | Inverter Brand: | ABB |
| Main Motor: | Siemens Beide | Voltage: | According To Requirement |
| Cooling Type: | Air Fans Cooling | ||
| High Light: | PPR Conduit Pipe Making Machine,20mm Pipe Making Machine,10m/Min Pipe Making Machine |
||
PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine
PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine,is mainly used to produce PPR Glass fiber pipes with various diameters pipe etc.We can produce one layer, two layers, three layers and even more layers.
The advantages of this PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine
1.high speed 18m/min
2.competitive price
3.full automatic
4.dust free cut
5. Pipe range:20-160mm
6. Linear velocity(Max):4-10m/min
Upto your different capacity requirement, we can design different size of extruder, Small diameter can be 2 or 4 pipe comes at one time
|
Item |
Name |
Quantity |
|
1 |
Vacuum Loading+ Dryer |
1set |
|
2 |
SW-65/33 Single Screw Extruder |
1set |
|
3 |
SW-50/30 Single Screw Extruder |
1set |
|
4 |
SW-25/25 Single Screw Extruder |
1set |
|
5 |
Mould(Φ20-Φ63mm) |
1set |
|
6 |
7Vacuum Tank |
1set |
|
7 |
Water Cooling Tank |
1set |
|
8 |
Haul Off |
1set |
|
9 |
Chipless cutter |
1set |
|
10 |
Auto Loader |
1set |
|
11 |

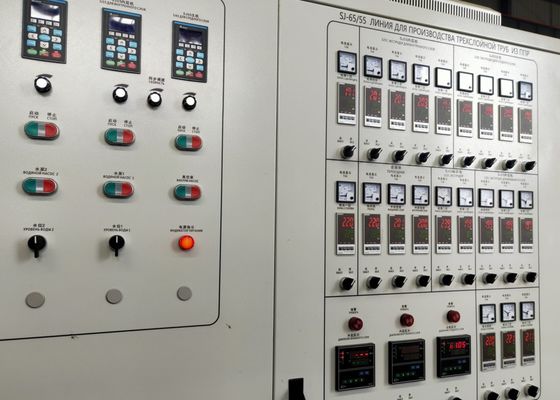

Control System |
1set |

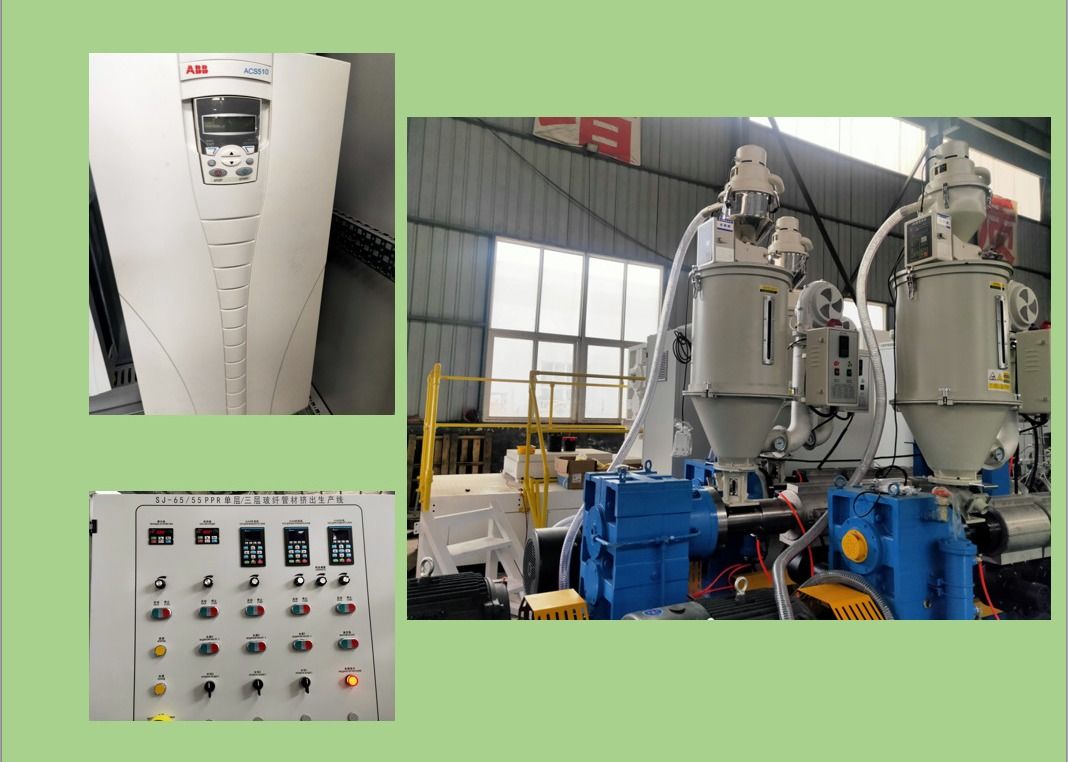

More machine photoes when we test the machine,The PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine,this is three layers pipe production machine with color line on the pipe.
The die of the PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine
Three layers PPR mould with color lines(2 lines- distance 5mm)
suitable for size from Φ20mm-Φ110mm made from steel Cr40 with hardness
All size and mould Cr painting very shining
Vacuum forming machine(by this equipment, the pipe can be the correct type as you need, there is one vacuum pipe and two water pump in this machine)
Container material: stainless steel 3mm
Effective length: 6m
Vacuum pump: 5.5KW×1
Water pump: 3KW×2
Cooling way: by water
Mobile electromotor: 0.75KW×1
Pipe dia. Arrangement: φ63-φ155mm
Hall off and Cutting machine(it can be set time to cut the pipe, so that the pipe can be the correct lenght as you need)
Haul off machine power:3kW
Effective working length:1200mm
Speed control: by inverter
Pipe dia. Arrangement: φ63-φ155mm
Press tight test: by pneumatic
Cutting Motor Power:2.2kW
Blower power: 1.5kW
Pipe dia. Arrangement: φ20-φ63mm
