Product Details:
|
| Type: | Pipe Extruder | Assembly Structure: | Integral Type Extruder |
|---|---|---|---|
| Inverter: | ABB | Condition: | New |
| Temperature Control: | Omron | Main Electrics: | Siemens / Schneider |
| High Light: | PVC Spiral Corrugated Pipe Extruder,Double Wall Corrugated Pipe Extruder,420kg/H Corrugated Pipe Extruder |
||

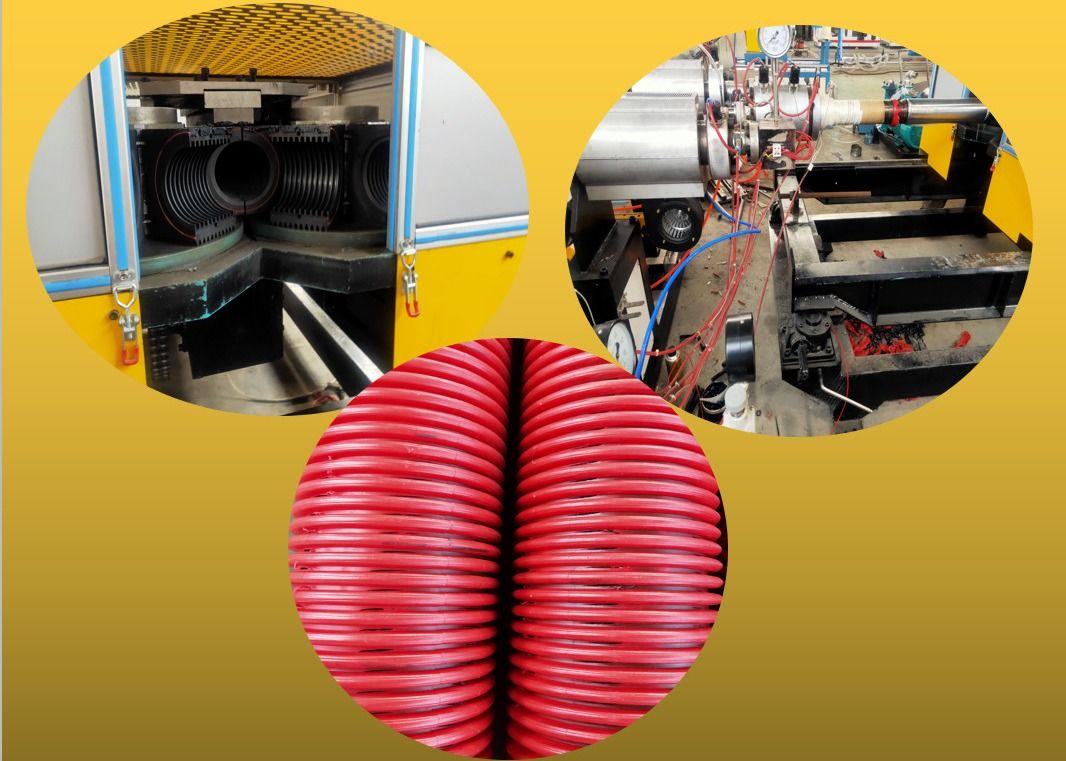

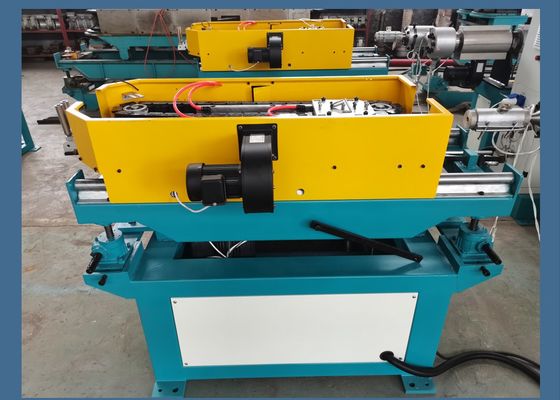

PVC HDPE PP Double Wall Spiral Corrugated Pipe Extrusion Making Machine Line
PVC HDPE PP Double Wall Spiral Corrugated Pipe Extrusion Making Machine Line is mainly used to process PP, PE, PP-R, ABS, PVC, PET and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets, roof tile, granules and other plastic products. It has the advantage of simple production technological process, high output, stable quality and low cost.
Characteristics: Screw optimizes composing separate type screw and mixing parts. Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together:
It's optimized during material melting process. Thus get more extrusion throughput.
It is realized extruding melt material in low temperature.
Cutting function is caused through separate clearance and it makes material equal well.
It's controlled during melt plasticization process. Therefore only granule smaller than separate clearance can enter melt channel.
Wide manufacture range for different materials. It's suitable for all kind of polyolefin materials and specially for material for LD/HDPE, PP, ABS.
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
