Product Details:
|
| Type: | Pipe Extruder | Assembly Structure: | Integral Type Extruder |
|---|---|---|---|
| Inverter: | ABB | Condition: | New |
| Temperature Control: | Omron | Main Electrics: | Siemens / Schneider |
| High Light: | 12m/Min Corrugated Drain Pipe Extruder,100kw Corrugated Drain Pipe Extruder,Integral Corrugated Drain Pipe Extruder |
||

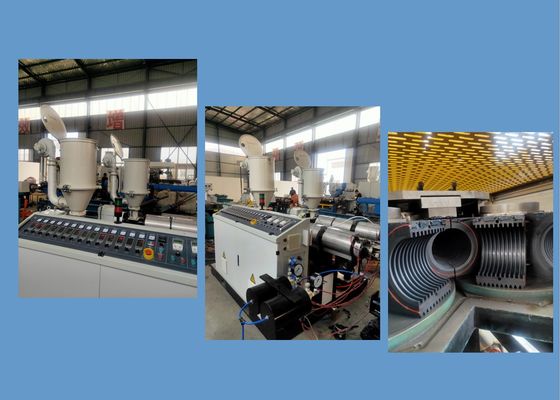

Corrugated Drain Pipe/ PE/ PP Double Wall Corrugated Pipe Extrusion Line
Description of Corrugated Drain Pipe/ PE/ PP Double Wall Corrugated Pipe Extrusion Line :
Corrugated Drain Pipe/ PE/ PP Double Wall Corrugated Pipe Extrusion Line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm

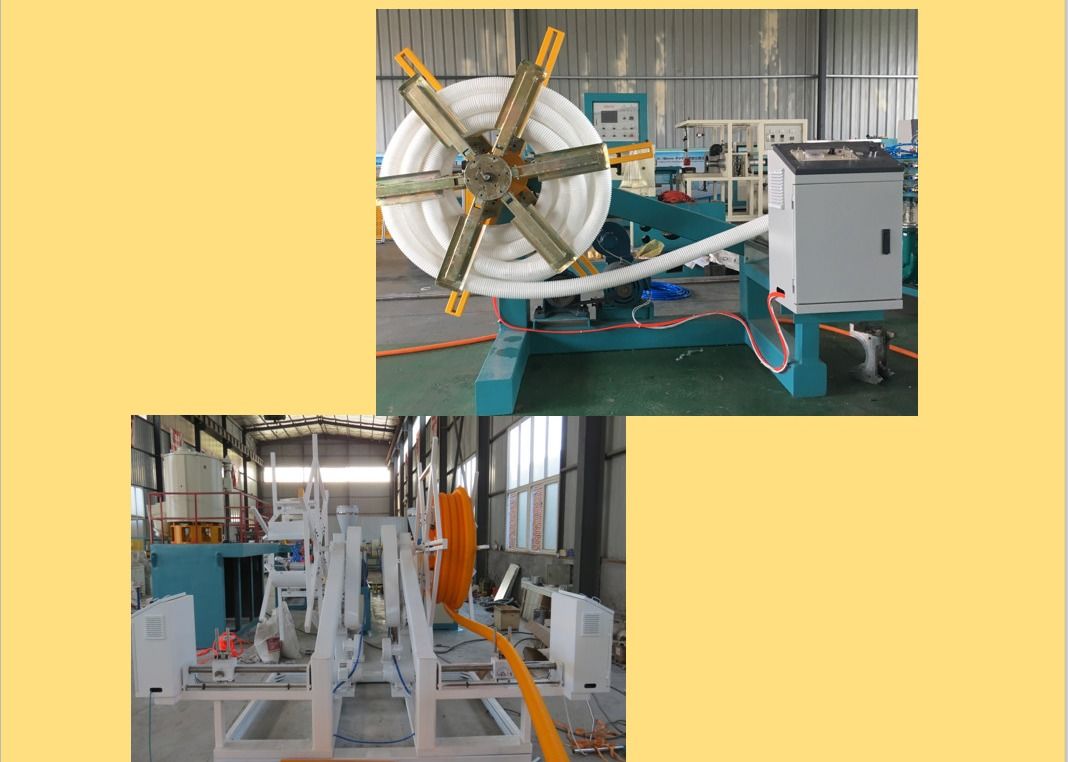

Coiling Winding Machine
1) It is mainly used for winding PE pipe,PE aluminum pipe,corrugated pipe,and other some pipe or profiles.This pipe winding machine is highly automatic,and usually work with whole production line.
2) The plate is controlled by gas; winding adopt torque motor; with special equipment to arrange the pipe, this pipe winding machine can wind pipe well, and work much stable.
3) There are mainly model for this hose pipe winding machine: 16-40mm single/double plate pipe winding machine, 16-63mm single/double plate pipe winding machine,63-110mm single plate pipe winding machine.
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
