Product Details:
|
| Screw Channel Structure: | Deep Screw | Screw Type: | Twin Screw |
|---|---|---|---|
| Power Supply: | 380V 3phase 50Hz | Extrusion Capacity: | 350-450g/H |
| Engagement System: | Full Intermeshing | Automation: | Automatic |
| High Light: | PP PET Plastic Sheet Extrusion Line,450g/Hr Plastic Sheet Extrusion Line,Full Intermeshing Sheet Extrusion Machine |
||
SW-65/33 PP PET Two Layers Plastic Sheet Extrusion Production Machine Line
Equipment list | |
1.Single screw extruder | 2. Hydraulic mesh changing system |

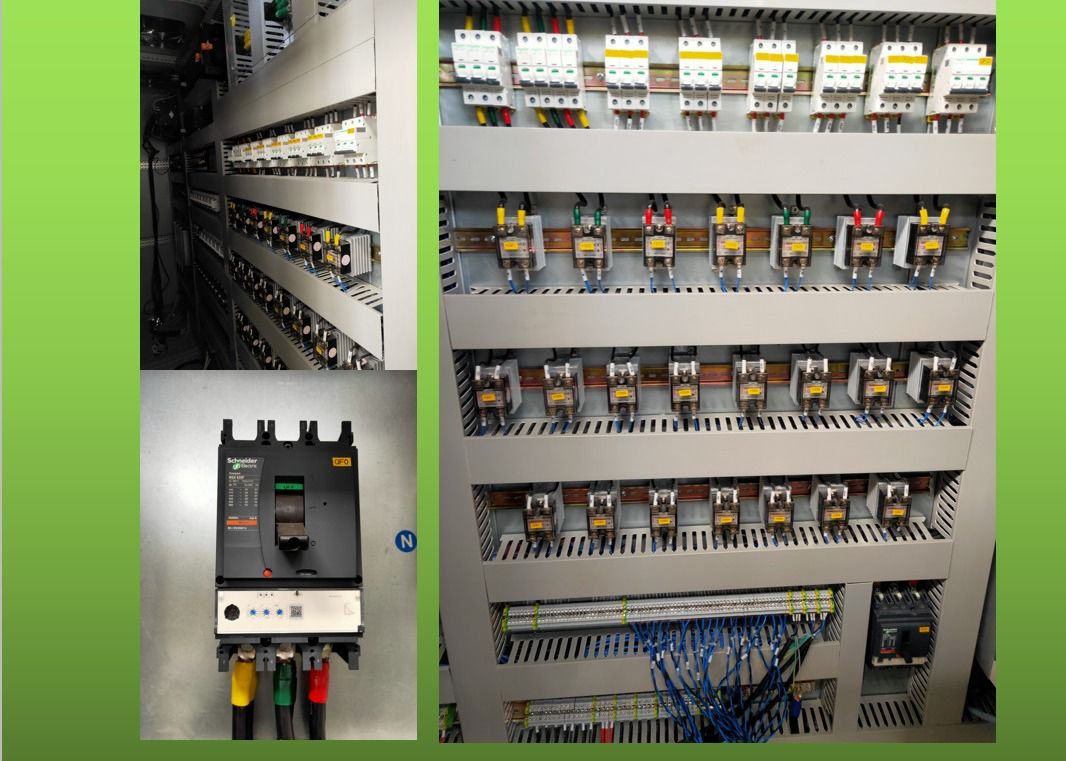

3. Die mold | 4.Electric control system |
5.Three roller calender | 6. Roll temperature regulator |
7. Transmission and side cutting | 8.Haul off machine |
9. Length Measurement | 10. Cutter |
11. Extruder vacuum feeder | 12. Driers |
Main Features of SW-65/33 PP PET Two Layers Plastic Sheet Extrusion Production Machine Line:
1. Specified screw design of profile get better plasticizing and more stable extrusion;
2. Speedy cooling forming die supports the production line with faster linear speed and higher efficiency;
3. Upper and lower belt is driven by the separate motor, which ensures stability and reliability of hauling;
4. Calibration table is adjustable by fore-back, left-right, up-down which brings simplified and convenient operation;
5. Saw cutting unit bring speedy and stable cutting with smooth incision; as to wide width board, Grace specially designed lateral moving cutting unit with lifter ensures speedy and stable cutting;
6. Combined unit of hauling and cutting is also offered, which is a more compact and economical design.
Summary | |
Suitable resin | PP PET |
Sheet width | 1000-1300mm(customized) |
Sheet thickness | 0.15-2mm(as requirement) |
Capacity | 300-400kg/h |
Power supply | 380V 3phase 50HZ |

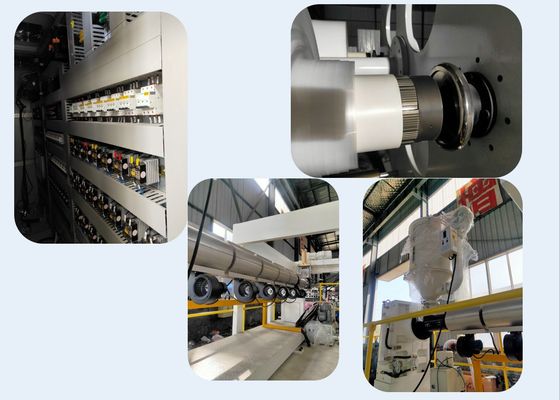

SW-65/33 PP PET Two Layers Plastic Sheet Extrusion Production Machine Line Single screw extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.We also have the co-extrusion type to use the recycled plastic to reduce the cost with high quality products.
SW-65/33 PP PET Two Layers Plastic Sheet Extrusion Production Machine Line Die head:
Mold material Alloy steel forging.Heating type Heating rods.Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips,and also differential action of up-down piece guarantee even thickness of the plate.
