Product Details:
|
| Extruder Model: | SW-120 | Max Capacity: | 350-500kg/H |
|---|---|---|---|
| Motor: | Siemens | Installation Power: | 180kw |
| Inverter: | ABB | Sheet Wide: | 1220-2100mm |
| High Light: | PP PS Sheet Extrusion Line,350kg/H Plastic Sheet Extrusion Line,1220mm Plastic Sheet Extrusion Line |
||

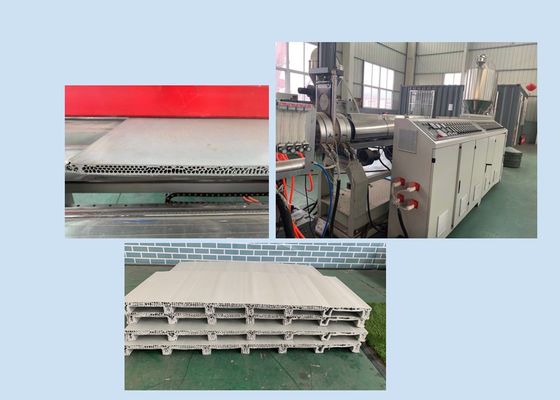

PC PP PE Plastic Hollow Cross Section Plate Grid Construction Board Machine
This PC PP PE Plastic Hollow Cross Section Plate Grid Construction Board machine consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.

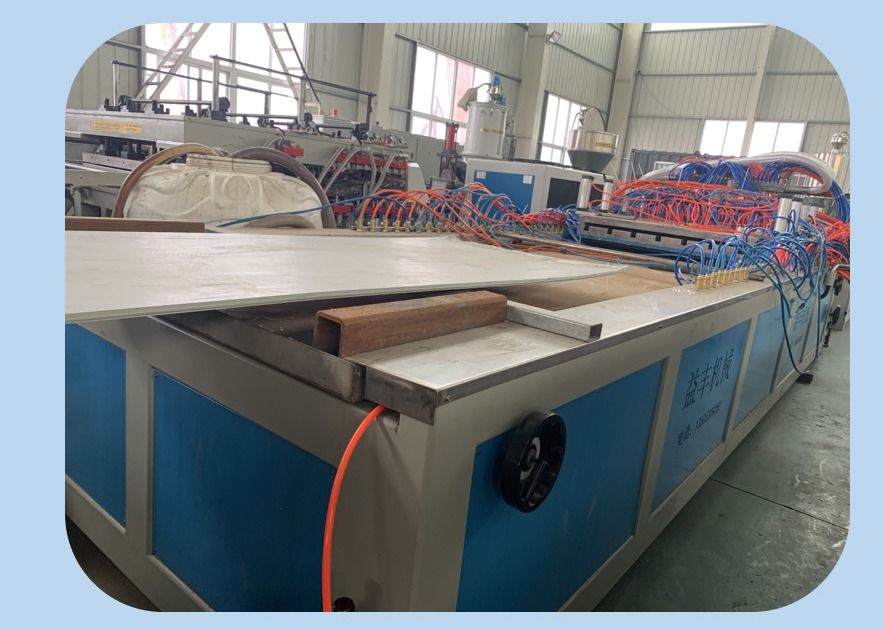

Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.
| PP/PE Hollow Sheet Extrusion Line Technical Data | PC Hollow Sheet Extrusion Line Technical Data | ||
| Extruder model | SW-120,SW-100 | Extruder model | SW-120, S-45 |
| Sheet width | 2100mm, 1220mm | Sheet width | 2100mm |
| Sheet thickness | 2-8mm, 2-8mm | Sheet thickness | 4-40mm |
| Max capacity | 350kg/h,200kg/h | Max capacity | 450kg/h |
| Main motor power | 132kw | Main motor power | 132kw |
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle mat
erial;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
