Product Details:
|
| Extruder: | Conical Twin Screw Extruder | Screw Barrel Raw Material: | 38crmoaia |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Inverter Brand: | ABB | Motor: | SIMENS |
| High Light: | 16mm PVC Pipe Extrusion Line,5m3/H PVC Pipe Extrusion Line,Conical Twin Screw Pipe Extrusion Line |
||
Drainage PVC Pipe Extrusion Line For Water Supply / Making Machine

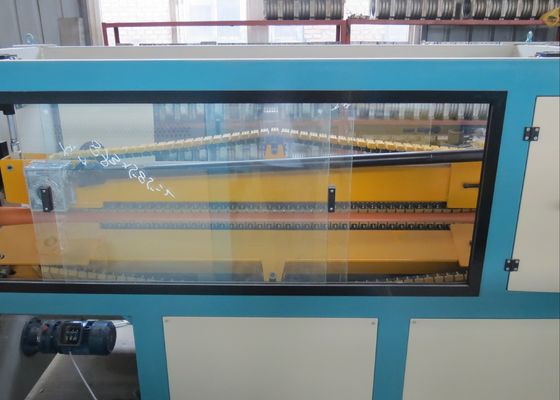

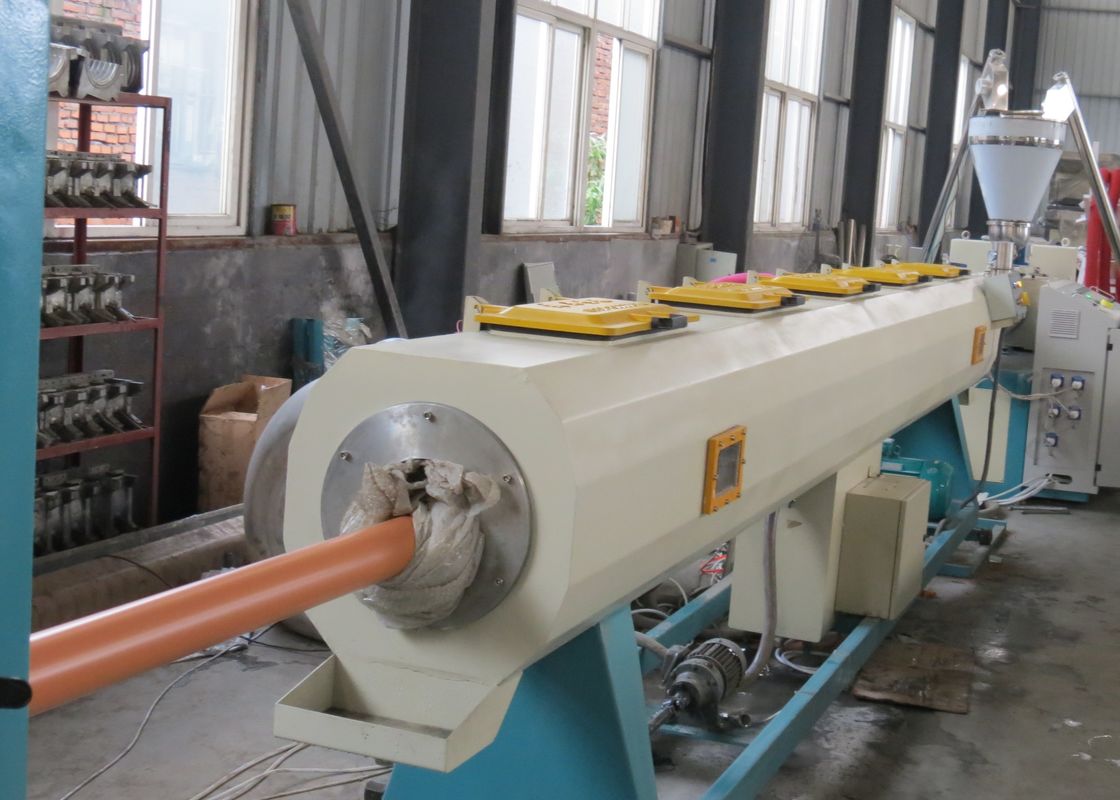

Drainage PVC Pipe Extrusion Line For Water Supply/ Making Machine is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes. The complete PVC Pipe production line is composed by conical twin screw extruder, pipe extrusion mold, vacuum calibration tank, haul off machine, cutter and stacker, belling machine (socketing machine). The main extruder and haul off we adopts ABB inverter, vacuum pump and motors adopt high quality famous brand. Haul off machine has two claws, three claws, four claws, six claws and eight claws accord to different pipe diameters. For pipe cutting machine has saw and planetary cutting type, which additionally attached with the meter counter and intensifying device. The production line is easily installation and operation, simple maintenance with reliable quality.
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Pipe dia. (mm) | 16-63 | 75-160 | 125-250 | 180-315 | 200-450 | 355-630 |
| Vacuum tank length(m) | 6 | 6 | 6 | 9 | 9 | 9 |
| Pressure of vacuum | 0.03-0.80 | 0.03-0.80 | 0.03-0.80 | 0.03-0.80 | 0.03-0.80 | 0.03-0.80 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Production Line Length(m) |
20 | 22 | 30 | 30 | 36 | 42 |
Drainage PVC Pipe Extrusion Line For Water Supply/ Making Machine Performance &Advantages:
1. PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
2. This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
3. The extruder and extractor adopt the imported AC frenquncey control device.
4. The vacuum pump and the main motor adopt the famous brand.
5. The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
6. About the cutter, you can choose the saw blade cutting type or the planet cutting type.
7. We also can offer some auxiliary machine about the pipe extrusion line.
8. With its wide range including various technical solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.
9. PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm.
