Product Details:
|
| Processing Type: | Pipe Extrusion | Output: | 200- 1400kg/H |
|---|---|---|---|
| Condition: | New | Temperature Control: | Omron |
| Inverter: | ABB | Motor: | Siemens |
| High Light: | 500kg/H HDPE Pipe Production Line,20mm HDPE Pipe Production Line,PLC Extruded Pipe Production Line |
||

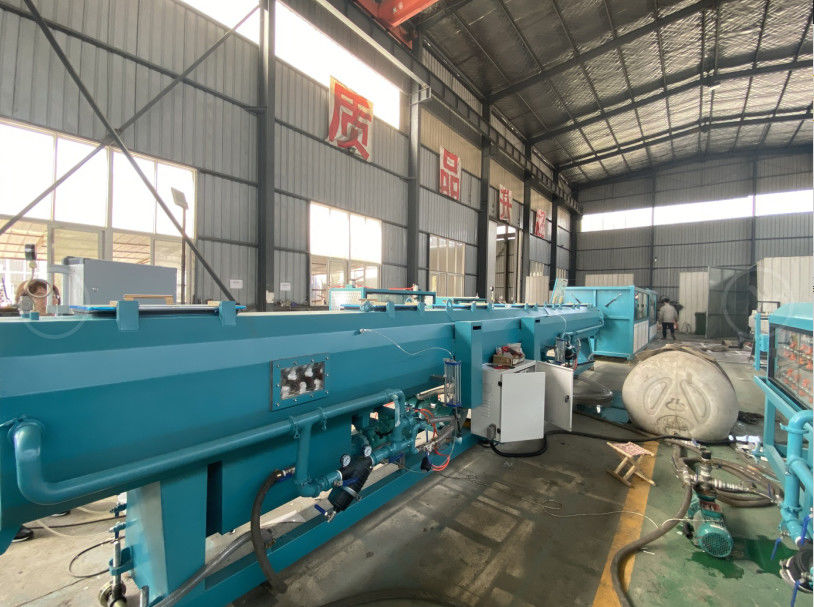

High Quality 200- 1400kg/H PE / HDPE Pipe Production Extrusion Line / Making machine
Our Company devoloped a new type of pipe production line for PE, PP and other polyolefin pipes, all models with advanced PLC/PCC modular intelligent control system, in order to realize the whole production line automation and real-time dta recording and closed-loop control, the production line has some high yield, wide adaption of raw materials, sustained and stable production of high quality products.
| Model | Pipe Spec(mm) | Single screw extreder | Max ooutput(kg/h) | Total power(kw) |
| GWG63-PE | Φ20-Φ63 | GW65/38 | 250-300 | 75/90 |
| GWG110-PE | Φ63-Φ110 | GW65/38 | 250-300 | 90 |
| GWG250-PE | Φ75-Φ250 | GW75/38 | 500-550 | 185 |
| GWG450-PE | Φ160-Φ450 | GW90/38 | 700-750 | 250 |
| GWG630-PE | Φ315-Φ630 | GW120/33 | 900-1100 | 280 |
| GWG800-PE | Φ400-Φ800 | GW150/33 | 1000-1200 | 315 |
| GWG1000-PE | Φ630-Φ1000 | GW150/33 | 1000-1200 | 315 |
| GWG1200-PE | Φ800-Φ1000 | GW120/33 & GW90/38 | 1500-1700 | 280/220 |
PE Pipe Extrusion/Production line is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer, crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Main Features of High Quality 200- 1400kg/H PE / HDPE Pipe Production Extrusion Line / Making machine
1) High output, capacity can be improved 30-50% at same main power motor condition.
2) High production line speed, Φ20mm pipe can reach 35m/min
3) Haul-off and cutter can use servo control
4) Optional equipment automatic weighing measurement and thickness control system.
Advantages of High Quality 200- 1400kg/H PE / HDPE Pipe Production Extrusion Line / Making machine
a-The optimum spiral bush highly improves the output of extruder
b-Accurate temperature control system ensures material melting performance
c-Unique screw design achieves better plasticizing and high quality products
d-Precisely designed gearbox with a high torsion guarantees stable running
e-H sharp frame to decrease vibrating of extruder
f-Advanced PLC operation system realizes synchronization and high quality products
g-Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
h-Offer stable haul-off unit with 2-12 caterpillars
i-Provide saw &chip free cutting options
j-Low energy consumption, excellent performance, and easy maintenance
