Water Supply Drainage Sewer UPVC CPVC PVC Hose Tube Pipe Production Extrusion Line

Description of Water Supply Drainage Sewer UPVC CPVC PVC Hose Tube Pipe Production Extrusion Line

GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

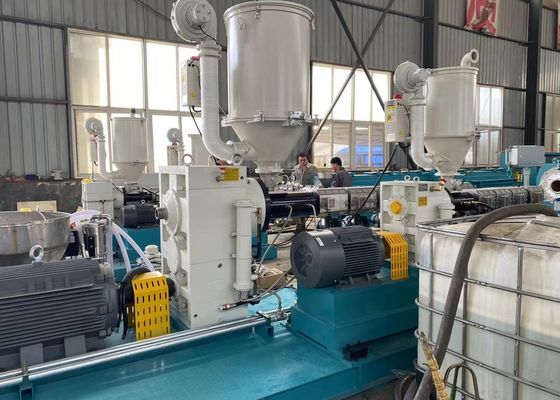

This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.

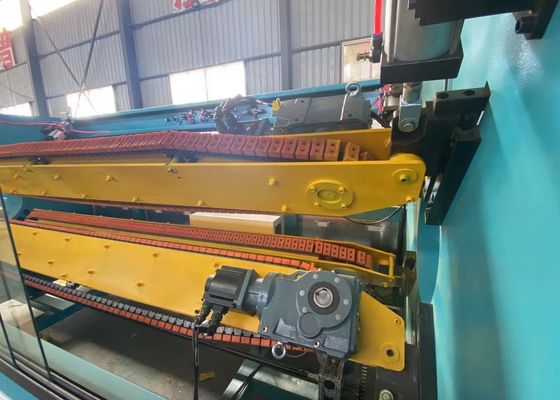

The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.
With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.
The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.

Introduction

For different pipe diameters, we offer different models of conical double screw Extruder for options: SJSZ51/105, SJSZ65/132, SJSZ80/156 and SJSZ92/188.
Equipped with high quality electrical components, like Siemens, Schneider, Omron, Fuji, Delta, etc.
Equipped with alloy screw & barrel, which guarantee high quality and stable output.
Equipped with high qualty gearbox and distributor.
Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens.

GF series Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option.
Available sizes for different pipe diameters from 16mm upto 800mm.
Equipped with famous and high quality vacuum pump and water pump with overload protection; water temperature auto controlling.
4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers.
5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.

GF series Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option.
Available sizes for different pipe diameters from 16mm upto 800mm.
Equipped with famous and high quality vacuum pump and water pump with overload protection; water temperature auto controlling.
4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers.
5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.

Normal Knife-lifting Cutter and Planetary Cutter are available for small and large pipe diameters.
Both types of cutters are equipped with dust collector.
