Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Inverter: | ABB | Air Switch: | Schneider |
| Motor: | Siemens | Condition: | New |
| High Light: | PE Pipe Single Screw Extrusion Machine,600kg/H Single Screw Extrusion Machine,600kg/H single screw extruder machine |
||
PE Pipe Single Screw Extrusion Machine 600kg/H Even Plasticization
The extrusion line is newly developed based on European technique of new type pipe production line. It's suitable for PE , PP and other polyolefine pipes high-speed extrusion. The extrusion line has many advantages, such as, nest outline , highly automatic control . stable performance. All the equipments can be controlled by the PLC/PCC smart modular, further, the automatic control ,real-time data record and closed-loop control are realized. The advantaged are high output , high adatability for different raw material, highly stable good-quality extrusion and so on.
| Type | pipe range(mm) | Max. output(kg/h) | Total power(kw) |
| PE-250 | 110-250 | 350 | 230 |
| PE-400 | 160-400 | 600 | 400 |
| PE-630 | 315-630 | 800 | 490 |
| PE-800 | 500-800 | 1000 | 650 |
| PE-1000 | 630-1000 | 1200 | 760 |
Specifications of PE Pipe Single Screw Extrusion Machine 600kg/H Even Plasticization
a) Highly automatic
b) Even plasticization
c) used for the protection of light cable
Description of PE Pipe Single Screw Extrusion Machine 600kg/H Even Plasticization
1.Suitable for fabricating elbow, tee, cross and Y shape (45° and 60° ) fittings of PE in workshop. Also used to lengthen the injection moulded fitting , make integrated fitting and weld straight pipe and fitting and so on.
2. Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
3. Removable PTFE coated heating plate.
4. Milling plate movement adopts safety switch control to avoid unexpected start.
5. Heating plate and milling plate adopt liner movement structure .
6. Low Starting pressure and high reliable seal structure
7. Separate two-channel timer shows time in soaking and cooling phases. When timing is over, it alarms and convenient for users
8. Reliable performance ,easy control.
Features of PE Pipe Single Screw Extrusion Machine 600kg/H Even Plasticization
1) A casing pipe and is widely used for the protection of light cable and electric cable
2) Pipe characteristics:
a) Corrosion resistance
b) Age resistance
c) Small friction coefficient of inner wall
d) Can be fixed quickly
3) Production line characteristics:
a) Highly automatic
b) Even plasticization
c) Long usage life
d) Easy operation and maintenance
Advantages of PE Pipe Single Screw Extrusion Machine 600kg/H Even Plasticization

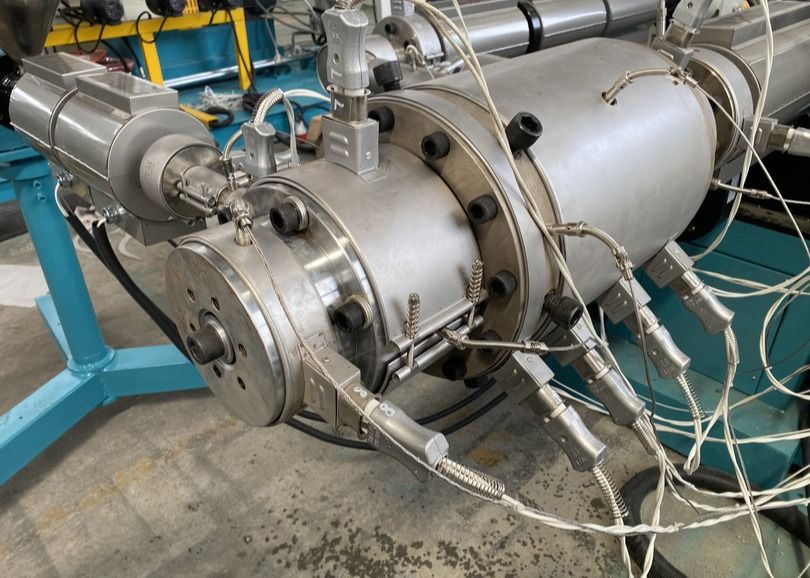

High capacity. Low energy consumption. Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable. Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.
