Product Details:
|
| Diameter: | 160-450mm | Screw: | Single-Screw |
|---|---|---|---|
| Plastic Type: | PE | Temperature Meter: | Omron |
| Inverter: | ABB | Motor: | Siemens |
| High Light: | 450mm Single Screw Plastic Extruder,Gas Supply Single Screw Plastic Extruder,160MM single screw pvc pipe machine |
||

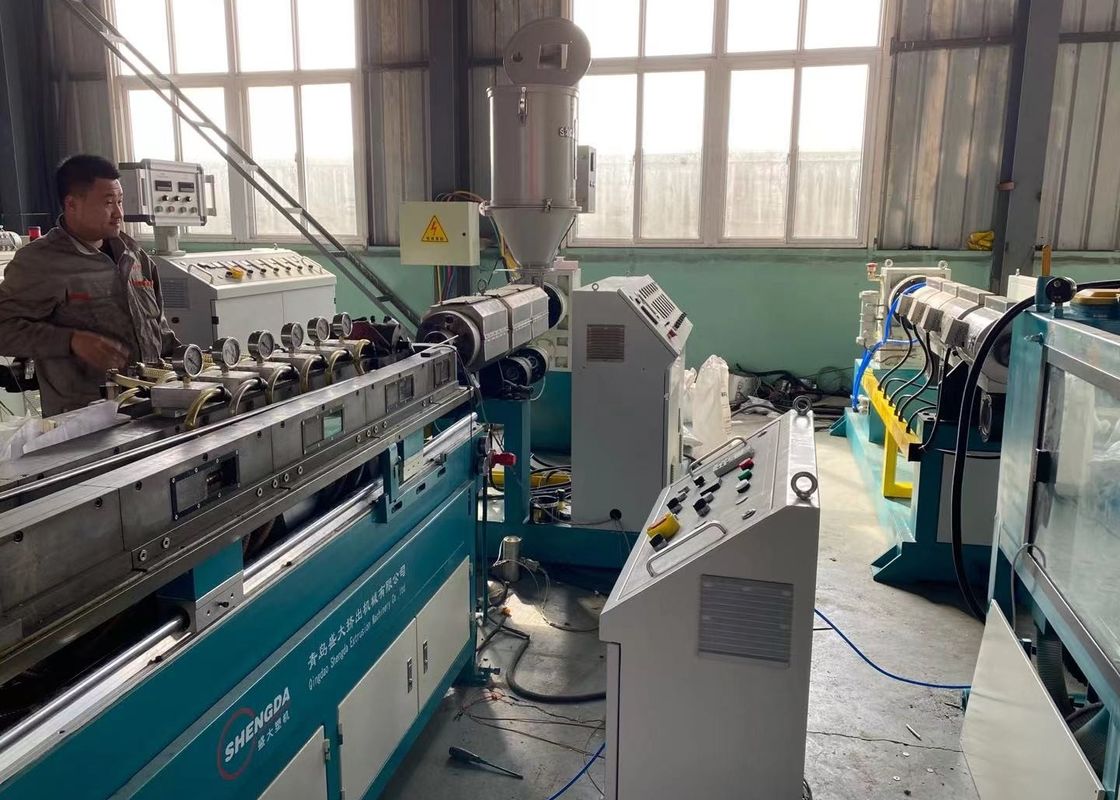

160-450mm HDPE PP Water Gas Supply Single Screw Extruder Machine
160-450mm HDPE PP Water Gas Supply Single Screw Extruder Machine is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Technical Parameters
| Item | SJDRM75 | SJDRM125 | SJDRM250 | SJDRM630 |
| Max Dia. Of pipe(mm) | 75 | 125 | 250 | 630 |
| Main machine | SJ65/30 | SJ75/30 | SJ90/30 | SJ120/30 |
| Motor power(kw) | 60 | 75 | 160 | 260 |
| Motor type | Direct current model | Direct current model | Direct current model | Direct current model |
| Max. capacity(kg/h) | 160 | 260 | 400 | 900 |
| Traction speed(m/min) | 0.5DRM8 | 0.3DRM4 | 0.2DRM2 | 0.1DRM1 |
| Max. traction(N) | 10000 | 15000 | 30000 | 40000 |
| Cutting type | Disc type cutting | Disc type cutting | Planet cutting | Planet cutting |
| length(mm) | 22000 | 34000 | 44000 | 58000 |
Main Composition
| Item | Quantity |
| SJ-XXX Single Screw Extruder | one set |
| Die And Mould | one set |
| Vacuum Calibration Device | one set |
| Spray Cooling Tanks | one set |
| Tractor | one set |
| Cutting Device | one set |
| Stacker | one set |
| Optional auxiliary machines for your choice | |
| Mixer | One set |
| Crusher | One set |
Process Flow of 160-450mm HDPE PP Water Gas Supply Single Screw Extruder Machine:
Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing
Application of 160-450mm HDPE PP Water Gas Supply Single Screw Extruder Machine
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
