90-400mm Smooth Rigid Corrugated Single Screw Extruder Machine Gas Pipe

Large Image : 90-400mm Smooth Rigid Corrugated Single Screw Extruder Machine Gas Pipe

Product Details:

Place of Origin:	China
Brand Name:	Win Win
Certification:	CE
Model Number:	SJ120/33

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	45 workdays
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

90-400mm Smooth Rigid Corrugated Single Screw Extruder Machine Gas Pipe

Description

Diameter:	90-400mm	Screw:	Single-Screw
Plastic Type:	PE	Output:	300kg
Power:	55-110kw	Customized:	Customized
High Light:	400mm Single Screw Extruder Machine , Gas Pipe Single Screw Extruder Machine , 400mm single screw plastic extruder

Gas Pipe 90-400mm Smooth Rigid Corrugated Single Screw Extruder Machine

No	Main Extruder	Screw Diameter	Pipe Diameter	Power	Output
1	BZ65	65mm L:D 33:1	16-63mm	37-45kw	120kg
2	BZ75	75mm L:D 33:1	16-75mm (Double cavities)	45-75kw	150kg
			75-250 (Single Cavity)	45-75kw	150kg
3	BZ90	90mm L:D 33:1	90-400mm	55-110kw	300kg
4	BZ120	120mm L:D 33:1	315-630mm	75-160kw	400kg
5	BZ150	150mm L:D 33:1	315-800mm	110-250kw	600kg
6	BZ180	180mm L:D 33:1	450-1500mm	200-315kw	1000kg

Description of Gas Pipe 90-400mm Smooth Rigid Corrugated Single Screw Extruder Machine

1.Adopt high speed single screw extruder, optimized spiral die ensure the melt distribution uniform to make the pipe wall uniform and guarantee the pipe pressure.

2. Suitable for PE, HDPE, MDPE, LDPE pipe extrusion.

3. PE pipe is widely used in many fields.Among them, water supply pipe and gas pipe are its two biggest application markets. It has excellent corrosion resistance, longservice life, good impact resistance, reliable connection performance, good construction performance.

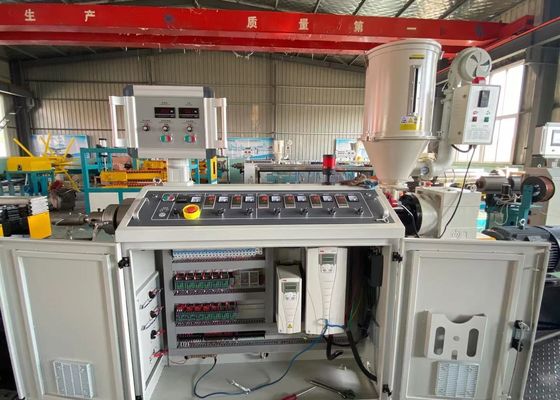

Single Screw Extruder

1. Feeding section is grooved structure with temperature controller, easy to get high capacity and stable extrusion.

2. By using new type barrer screw design, this extruder has a high extrusion capacity in high RPM with low energy consumption, and this extruder can control the material shearing to get the ideal and even melt temperature.

Double Chamber Vacuum Calibrator

1. Optimized design tank and water pipe system made from stainless steel.

2. Total length 6000mm

3. Two vacuum chambers are controlled separately, equipped with temperature controllers and water level controllers.

4. The vacuum calibration table can be adjusted up and down, left and right.

Sparay Cooling Tank

1. When the vacuum calibrator doesn't have enough cooling capacity. The spray cooling tank would be needed for PPR pipe cooling.

2. Rain curtain type , Length 6000mm

3. Cooling tank material: stainless steel

4. One set or two sets in each extrusion line.

Haul off unit

1. Caterpillar pressed by pneumatic cylinder

2. Hual off speed : 0.3-3.8m/min

3. Working pressure : 0.5-0.7Mpa

Cutter

1. Suitable for small or soft pipes

2. Cut by rotating disk-saw, with dust suction function

Li Bing

Tel:86-132 7834 4832 (Wechat/skype/whatsapp)

E-mail: libing@qdwinwin.cn

Web1: www.qdwinwin.cn

Web2: www.corrugatedpipeextrusionline.com

Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
