Product Details:
|
| Specification: | 16mm | Speed: | 8-10m/min |
|---|---|---|---|
| Screw: | Twin-screw | Product Type: | PVC Pipe |
| Automation: | Automatic | Computerized: | Computerized |
| High Light: | 16mm Plastic Pipe Production Line,Electric Conduit Plastic Pipe Production Line,16mm pvc pipe extrusion line |
||
PVC 16mm Water Electric Conduit Pipe Hose Tube Plastic Pipe Production Line

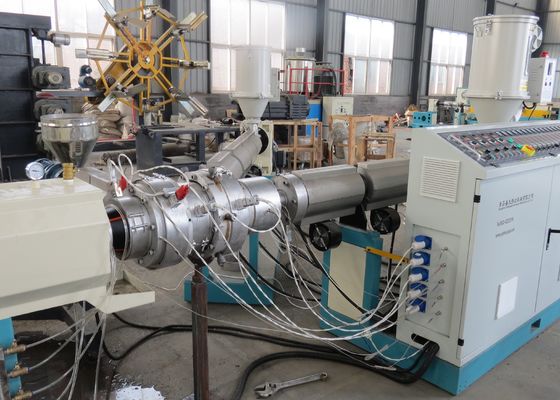

PVC 16mm Water Electric Conduit Pipe Hose Tube Plastic Pipe Production Line can be used to produce various PVC electrical tube.can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mmas example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
|
NO.
|
Name
|
Quantity
|
|
1
|
Conical screw extruder (with automatic feeding system)
|
1set |
|
2
|
Die head and calibration mould
|
1set
|
|
3
|
Calibrating and cooling tank
|
1set
|
|
4
|
Haul-off machine
|
1set
|
|
5
|
Cutting machine
|
1set
|
|
6
|
Stacker
|
1set
|
Technical parameters of PVC 16mm Water Electric Conduit Pipe Hose Tube Plastic Pipe Production Line
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Pipe dia. (mm) | 16-63 | 75-160 | 125-250 | 180-315 | 200-450 | 355-630 |
| Vacuum tank length(m) | 6 | 6 | 6 | 9 | 9 | 9 |
| Pressure of vacuum | 0.03-0.80 | |||||
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Production Line Length(m) |
20 | 22 | 30 | 30 | 36 | 42 |
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry. Our products have passed ISO9001-2000 quality certification system, CE certification, SGS certification and gost certification of CIS countries.
If you need plastic extrusion equipment, please feel free to contact me!
