Product Details:
|
| Specification: | 16mm | Speed: | 8-10m/min |
|---|---|---|---|
| Screw: | Twin-screw | Product Type: | PVC Pipe |
| Automation: | Automatic | Computerized: | Computerized |
| High Light: | 91KW Conduit Pipe Production Line,32mm Conduit Pipe Production Line,16mm Conduit Pipe Production Line |
||
16-32mm 91KW Plastic PVC Conduit Pipe Production Line Making Machine
PVC UPVC Pipe Extrusion Line
3. Our machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw to ensure uniformity of plastic extrusion, high capacity production.
|
No
|

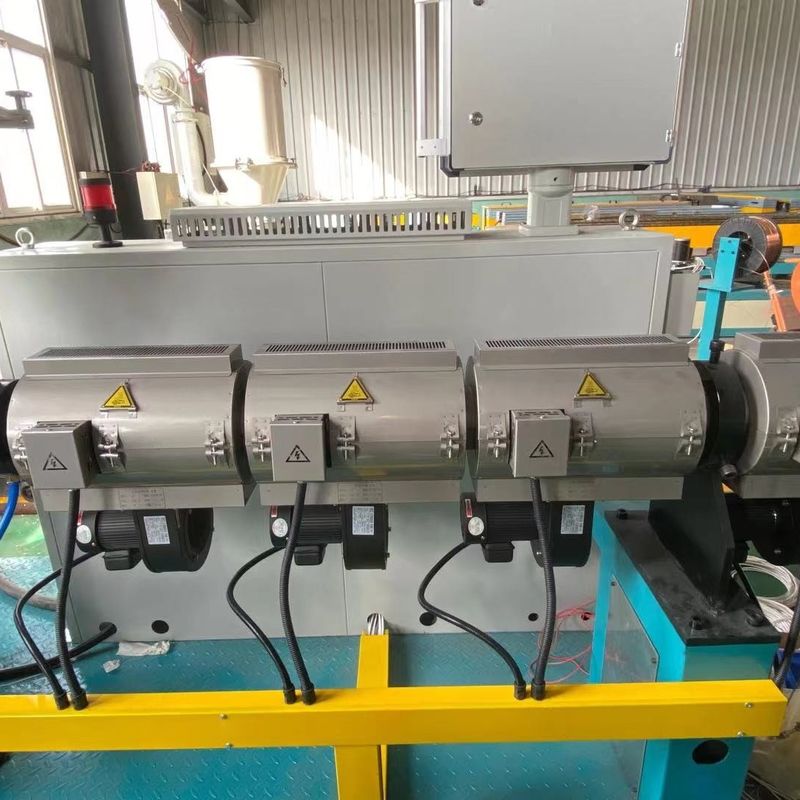

Main Extruder
|
Screw Diameter
|
Pipe Diameter
|
Cavities
|
Power
|
|
1
|
SJZ55
|
55mm/125mm
|
16-63mm
|
Double
|
60kw
|
|
2
|
SJZ65
|
65mm/132mm
|
16-32mm
|
Four
|
91kw
|
|
|
|
|
50-160mm
|
Single
|
85kw
|
|
|
|
|
50-250mm
|
Single
|
86.5kw
|
|
3
|
SJZ80
|
80mm/156mm
|
110-250mm
|
Single
|
114kw
|
|
|
|
|
200-400mm
|
Single
|
131kw
|
|
4
|
SJZ92
|
92mm/188mm
|
315-630mm
|
Single
|
220kw
|
|
|
|
|
500-800mm
|
Single
|
240kw
|
1. Generally used for processing of PVC powder, it can produce all kinds of PVC pipes,profiles,boards.
1. Die head material : 40Cr
1. Optimized design tank and water pipe system made from stainless steel.
1. When the vacuum calibrator doesn't have enough cooling capacity. The spray cooling tank would be needed for PVC pipe cooling.
1. Caterpillar pressed by pneumatic cylinder
1. Planetary cutting by disk-saw. No dust
2. Cutting and chamfering is synchronal.
1. Reverse driving method : Pneumatically
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry. Our products have passed ISO9001-2000 quality certification system, CE certification, SGS certification and gost certification of CIS countries.
If you need plastic extrusion equipment, please feel free to contact me!
