Product Details:
|
| Specification: | 20-63mm | Speed: | 1-10m/min |
|---|---|---|---|
| Screw: | Twin-screw | Product Type: | PVC Pipe |
| Condition: | New | Computerized: | Computerized |
| High Light: | Double Cavity Plastic Pipe Extrusion Line,63mm Plastic Pipe Extrusion Line,63mm Plastic Pipe Production Line |
||

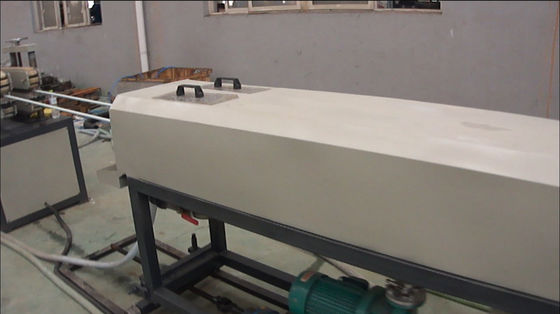

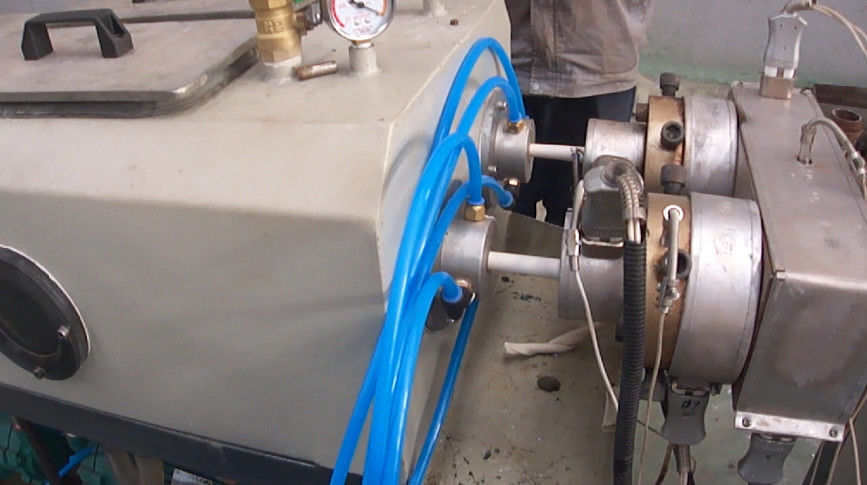

20-63mm Double Cavity Plastic Pipe Extrusion Line Production Line
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
Max. Rotating speed(rpm) |
40 |
38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
Capacity(kg/h) |
80~100 |
100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
Features Specifications of 20-63mm Double Cavity Plastic Pipe Extrusion Line Production Line:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
All SJZ Series Conical Twin-Screw Extruder Technical Parameter:
pvc pipe extrusion mahcine
Plastic Pipe Extruder/Plastic Extruders:
Different types of extruders With different sorts of molds and auxiliary machines,
it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.
It can also extrude PP.PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.
It can bear larger extruding pressure.
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry. Our products have passed ISO9001-2000 quality certification system, CE certification, SGS certification and gost certification of CIS countries.
If you need plastic extrusion equipment, please feel free to contact me!
