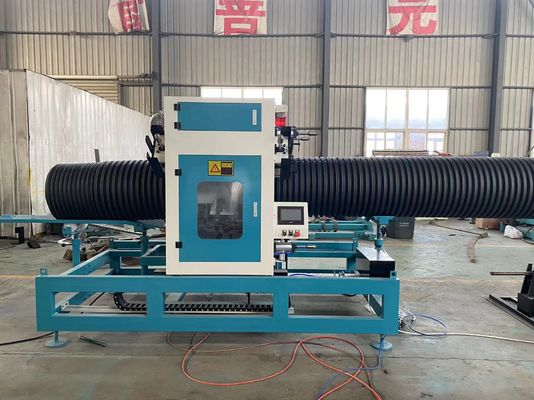

200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line

200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line
200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line 200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line

Large Image :  200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line

Product Details:
Place of Origin: China
Brand Name: Win Win
Certification: CE
Model Number: SJ-75/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 45 workdays
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now

200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line

Description
Product Type: PE PP Pipe Screw No.: Single-screw
Engagement System: Full Intermeshing Customized: Customized
Condition: New Warranty: 1 Year
High Light:

200mm Double Wall Corrugated Pipe Extrusion Line

,

400mm Double Wall Corrugated Pipe Extrusion Line

,

400mm double wall corrugated pipe machine

200 - 400 PE PP HDPE Double Wall Corrugated Pipe Extrusion Line



Model Pipe Range (mm) Corrugator Type Output Capacity(kg/h) Main Motor Power (kw)
SJ160 63 - 160 Horizontal 400 55+45
SJ250 75 - 250 400 - 520 (55+45) - (75+55)
SJ400 200 - 400 740 - 1080 (110+75) - (160+110)
SJ600 200 - 600 1520 - 1850Vertical / Shuttle 1080 - 1440 (160+110) - (200+160)
SJ800 200 - 800 1520 - 1850 (220+160) - (280+200)
SJ1200 400 - 1200 1850 - 2300 (280+200) - (355+280)

Machine line main equipment list:

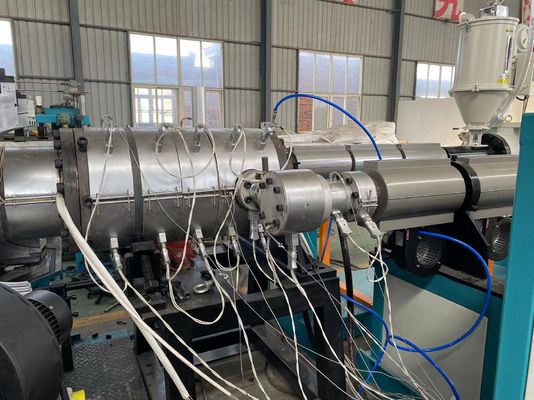

1. 75/30 single screw extruder
2. 65/30 single screw extruder
3. Co-extrusion Die head mold
4. Forming machine with water and air cooling type
5. Automatic double station winding machine
New Design extruder our extruders adopt SIEMENS BEIDE MOTOR, ABB or TAIWAN DELTA INVERTOR, omron temperature controller, The two electrical boxes are merged into one, which is easy to install and operate The main machine can adjust the base, the precision of the mould is higher after fine adjustment Beautiful appearance, small occupation.
Advantages of 200 - 400 PE PP HDPE Double Wall Corrugated Pipe Extrusion Line

Flexible production organization improve equipment utilization and increase overall capacity of the factory
The moulds are compatible between different sizes of corrugators; it makes production organization more flexible. All the corrugated pipe production lines can be utilized more sufficiently to increase the overall capacity of the factory.
Stable, Reliable and High Durability
  1. Excellent mechanical structure design is the premise of stable running
  2. Manufactured with world-class machine tools to guarantee high accurate
  3. Implement strictly high-grade quality standards with international advanced quality testing apparatus
  4. Select high-quality suppliers around the world
Higher pipe quality
(1)Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
(2)Stable vacuum molding technology and unique double-layer socket technique ensure that the inner layer and outer layer stick together perfectly
Higher output, lower production cost
The mould blocks are continuously cooled with pressure water cooling system to achieve higher cooling efficiency and higher production speed of the corrugated pipe machine, so as to lower pipe production cost.
200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line 0
200mm - 400mm PE PP HDPE Double Wall Corrugated Pipe Extrusion Line 1
Li Bing
Tel:86-132 7834 4832 (Wechat/skype/whatsapp)
E-mail: libing@qdwinwin.cn
Web1: www.qdwinwin.cn
Web2: www.corrugatedpipeextrusionline.com
Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
