Product Details:
|
| Product Type: | PE PP Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Capacity: | 200kg/h | Exhaust: | Exhaust |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 6m/min Double Wall Corrugated Pipe Production Line,3m/min Double Wall Corrugated Pipe Production Line,6m/min double wall corrugated pipe machine |
||
Product Description of 3-6m/min Plastic PE HDPE PVC Double Wall Corrugated Pipe Extrusion Production Line
Qingdao Win Win Machinery Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line, PVC double-wall corrugated pipe production line.
PE double wall corrguated pipe production line adopts complicated mechanic head ,double combiated machine to production to provide material and spiral writhe .
For HDPE,you can choose high efficient single screw extruder.
For PVC,you can choose conical twin screw extruder or parallel twin downstream equipment.

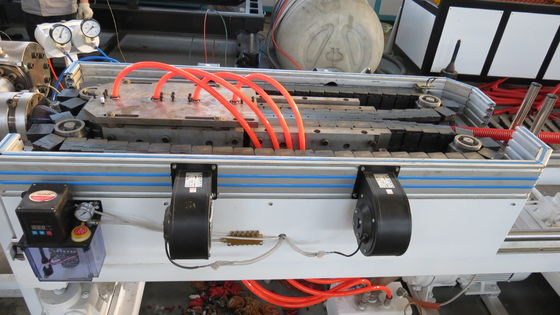

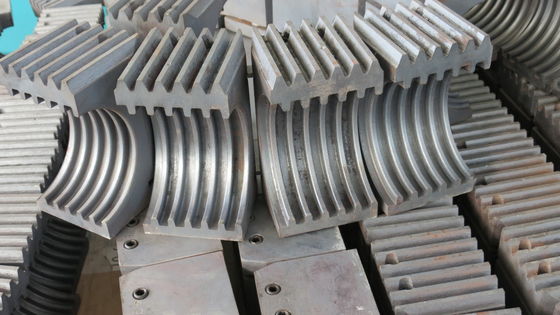

The forming system of this line consists of mould and corrugator.The mould blocks can be easily changed and they may have air or water cooling.
Adopt to PLC control system it is more accurate more intellectualize control order makes the operation more simple. The production line is the single screw extruder in high efficiency, has the independent water and air circular system and form the double wall corrugated pipe by cooling water and compress air. Corrugated forming system with strong cooling ability operation more simple efficiency, The mould surface is nitrided, has the adjust equipment to adjust the wall thickness, it suitable for different diameters pipes. Extruder has air cooling and water cooling function.
| Item | Details |
| Capacity | 200kg/h |
| Forming Way | Vacuum System |
| Control Way | Electric control or computer control |
| Line Speed | 3-6m/min |
| Diameters | ID 32mm to ID 110mm |
