Product Details:
|
| Product Type: | PE | Screw No.: | Single-screw |
|---|---|---|---|
| Engagement System: | Full Intermeshing | Customized: | Customized |
| Inverter: | ABB | Warranty: | 1 Year |
| High Light: | 80kg/h Double Wall Corrugated Pipe Extrusion Line,PVC Double Wall Corrugated Pipe Extrusion Line,50kg/h Double Wall Corrugated Pipe Extrusion Line |
||
1. HDPE PP PVC double double wall corrugated pipe extrusion line can be designed according to your required materials,
such as HDPE, PP or (U)PVC.
2. parameters of HDPE PP PVC double double wall corrugated pipe extrusion line:
| material | pipe diameter range(ID) | single screw extruder | output (KG/H) | MAX. SPEED (M/MIN) |
| PE/PP/PVC granules | 50-120MM | SJ65/33 | 200KG/H | 6M |
| 110-250MM | SJ75/33 SJ65/33 | 300KG/H 200KG/H | 5M | |
| 200-400MM | SJ90/333 SJ75/33 | 450KG/H 300KG/H | 2.5M | |
| 500-800MM | SJ120/33 SJ90/33 | 850KG/H 450KG/H | 0.8m | |
| 800-1200MM | SJ150/33 SJ120/33 | 1200KG/H 850KG/H | 0.5M |
Advantages:
1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;

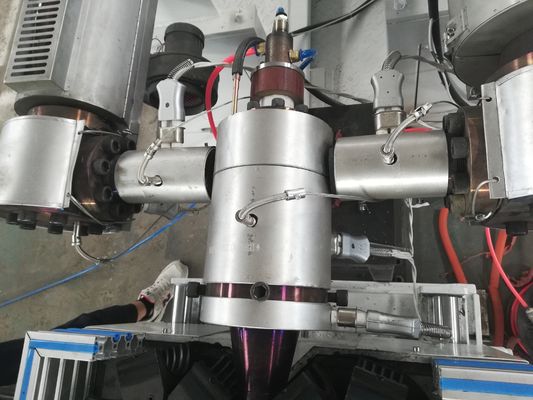

2. Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;
5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6. U type, R type and Air blow type socket can be provided according to applications;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
