Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Twin-screw |
|---|---|---|---|
| Pipe Range: | 63-160mm | Output Capacity: | 200kg/Hr |
| Computerized: | Computerized | Feeding Mode: | One Feed |
| High Light: | CPVC Electricity Conduit Cable Pipe Machine,UPVC Electricity Conduit Cable Pipe Machine,PVC Pipe Double Screw Extruder Machine |
||
SJ65/132 Twin/Double Screw PVC/UPVC/ CPVC Electricity Conduit Cable Pipe Machine
| Model | Pipe O.D. (mm) |
Main Extruder | Max.Capcity(kg/h) | Max.Hauling Speed (m/min) |
| SYPVC-63 | Ø16-Ø63 | SJSZ-50/105 | 130 | 16 |
| SYPVC-110 | Ø20-Ø110 | SJSZ-55/120 | 180 | 12 |
| SYPVC-160 | Ø63-Ø160 | SJSZ-65/132 | 200 | 8 |
| SYPVC-250 | Ø63-Ø250 | SJSZ-80/156 | 460 | 8 |
| SYPVC-400 | Ø110-Ø400 | SYSZ-80/156 | 550 | 2.4 |
| SYPVC-630 | Ø160-Ø630 | SJSZ-92/188 | 750 | 1.6 |
| SYPVC-800 | Ø280-Ø800 | SJSZ-92/188 & 65/132 | 850 | 1.6 |
| SYPVC-1000 | Ø630-Ø1000 | SJSZ-92/188 & 80/156 | 1000 | 0.6 |
Recommended raw material: UPVC Powder, CaCO3 + Additives.
Operators position: Left of extrusion direction.
Extrusion height center height: 1050mm
Working Condition
Size of line: 30*2*2.5 meters
Temperature 0-35ºC
Supply Voltage:380V-3P- 50HZ
Voltage tolerance: ±10%
Cooling Water: ≤20ºC, ≥0.3Mpa, 5T/h
Compressed air: 0.5m3/min, >0.5Mpa
SJ65/132 Twin/Double Screw PVC/UPVC/ CPVC Electricity Conduit Cable Pipe Machine Comsist of

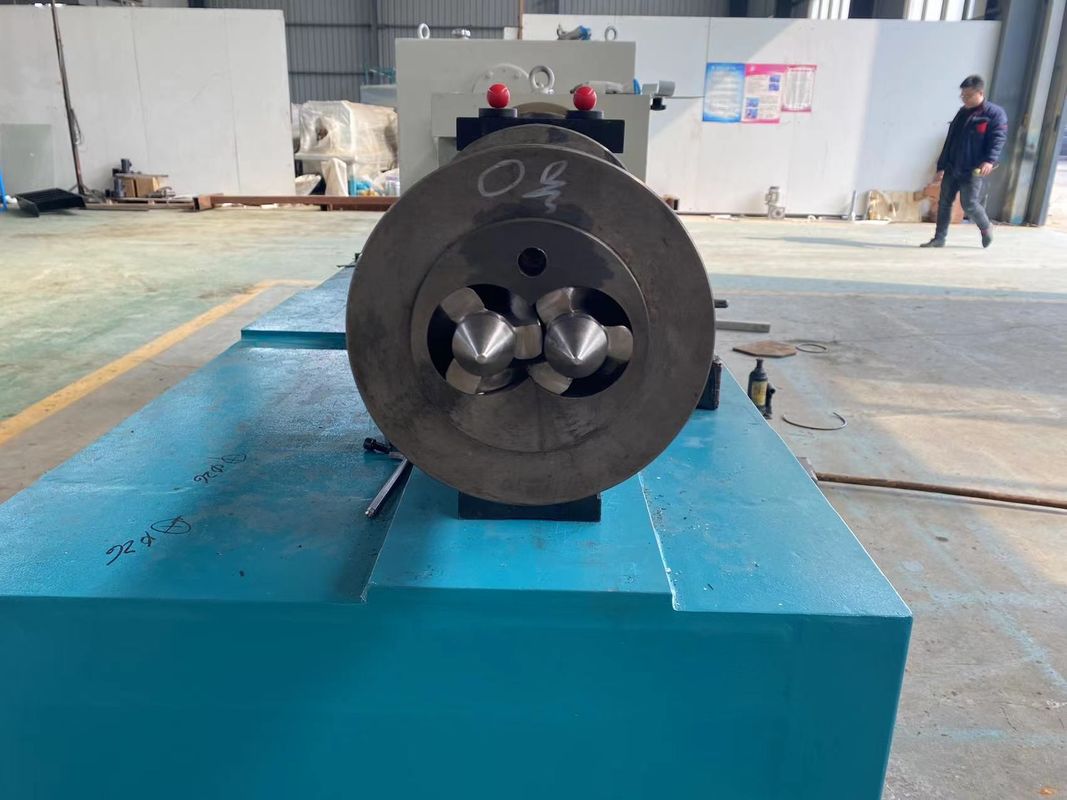

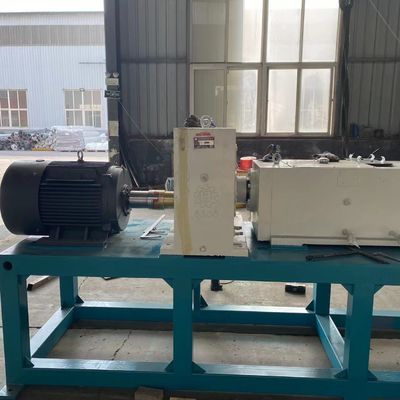

Conical Twin Screw Extruder
Attached with bialloy screw & barrel, which is with enough nitreagon thickness,that will allow high percentage CaCo3 and longer life time.
Die mold.
Pipe Dia. :Φ63-160mm
Mould material:Refined #45 steel forge and Inner channel is chrome plated
Sizer material:Brass alloy
Heating ring:Mica & Ceramic
ZDLX-420*6000 Vacuum calibration & cooling tank
100% SUS 304.
Equipped with muffler silencing device
temperature controller automatic drainage system
and manual drainage system
Laser printer
Imported light source: ultra long life 100,000 hours
High speed galvanometer: marking speed exceeds 7000mm / s, strong anti-interference ability and high marking accuracy.
SLQ-160 3-Claw haul-off equipment
Own designed traction structure,could save electric consumption,
and easy to operate & maintainance.
More importantly, stronger traction ability.
XQG-160 Non dust pipe cutter
With SIEMENS PLC , OMRON encoder
Ensure exact cutting length.
Smooth cutting surface and better cutting speed than before.
XG-160 Stacker
Electric Cabinet
SIMENS PLC & SIEMENS TOUCH SCREEN
ABB Inverter
CHTN low voltage electrics
