Product Details:
|
ScrewScrew Channel Structure Channel Structure: | Deep Screw | Automation: | Automatic |
---|---|---|---|
SpeedSpeed Control Control: | By Inverter | Motor: | Siemens |
Computerized: | Computerized | Guarantee Period: | 1 Year |
High Light: | Conical Double Screw Extruder Machine,PVC Pipe Double Screw Extruder Machine,Automatic Twin Screw Extruder Machine |

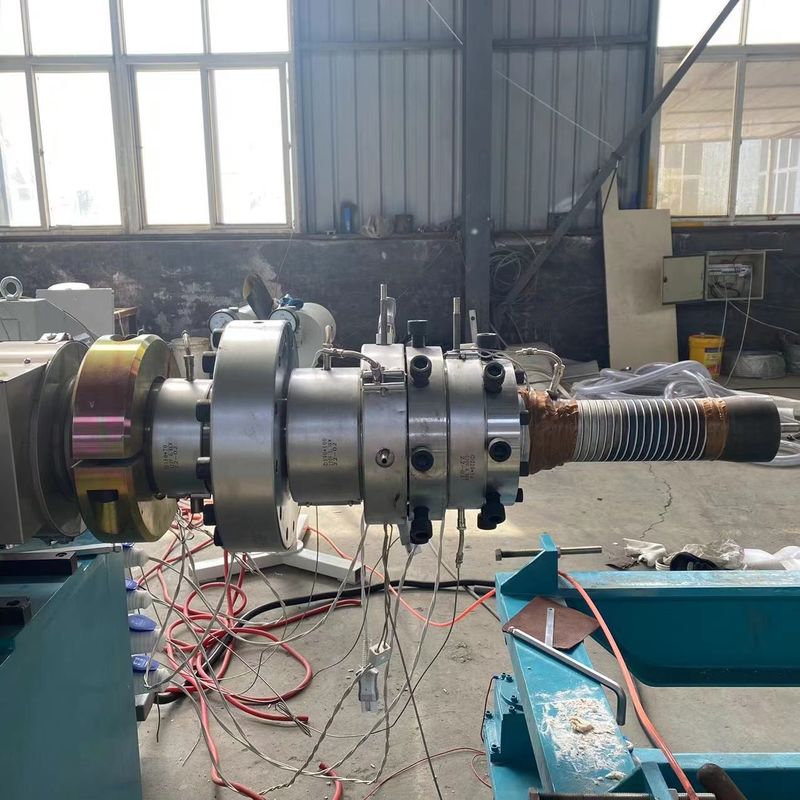

Conical Twin Double Screw Extruder Machine Automatic For PVC Pipe Tube Pipe
Technical parameters of conical twin screw extruder: | ||||||
Item/Model | SJSZ45/90 | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Screw dia(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
Driving motor (kw) | 15 | 18.5 | 22 | 37 | 55 | 110 |
Output (kg/h) | 70 | 100 | 150 | 250 | 400 | 750 |
Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
Rotating speed (rpm) | 1-45 | 1-45.5 | 1-40 | 1-38 | 1-36.9 | 1-34.7 |
Weight (kg) | 2800 | 3000 | 3500 | 4000 | 5000 | 6000 |
Dimension (mm) | 3360*1290*2150 | 3400*1290*2150 | 3620*1350*2200 | 3900*1520*2450 | 4750*1600*2480 | 6700*1600*2650 |
Description of conical twin screw extruder:
SJSZ series conical twin screw extruder is a kind of special equipment for extruding of PVC resin/powder mixture. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC pipe material, profiled material, plate material, sliced material, board material, roof tile material, bar material, granulation/pelletizing and wood PVC, wood PE material.
The screw has applied oil cooling system. The barrel is cooled by special wind cooling system., which applies special computer control. According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
The electrical system has mainly applied imported brands, like Siemens, ABB, Omron, Schneider, Fuji, etc. It has the multiple alarm system; there are few problems which can be easily eliminated.
The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be +/-1ºC
