Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Specification: | ID16--OD200mm | Extruder Control: | By Siemens PLC Screen Touch |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | 200mm Corrugated Pipe Extrusion Line,17.5m/min Corrugated Pipe Extrusion Line,Siemens PLC Plastic Pipe Production Line |
||
Structure of 16-200mm PE Plastics Corrugted Pipes Extrusion Line with High Speed
The16-200mm PE Plastics Corrugted Pipes Extrusion Line with High Speed consists of five main parts: extruder, corrugator, cooling bath, automatic sawdust-free cutting machine and pipe unloading device.
| 1 | Model SJPE-65/33B single screw extruder | 1 set |
| 2 | Model SJPE-75/33B single screw extruder | 1 set |

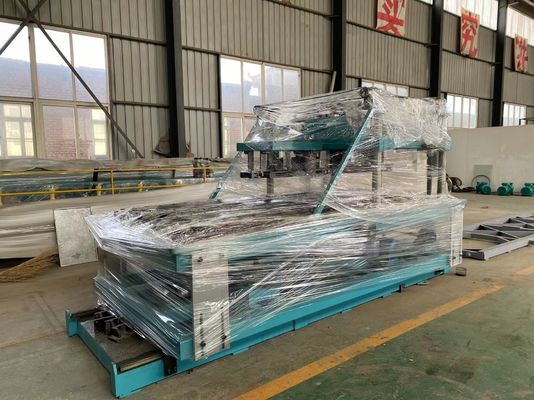

| 3 | Model 180H high-speed water cooling corrugator | 1 set |
| 4 | Model 180 spray cooling bath | 1 set |
| 5 | Model 180 automatic sawdust-free cutting machine | 1 set |
| 6 | Model 180 unloading device with weighing system | 1 set |
Feature of 16-200mm PE Plastics Corrugted Pipes Extrusion Line with High Speed
- Automatic feeder with Alarming on lacking of material.
- Harden treated screw and barrels for longer life span and durability.
- The complete extrusion line runs full-automatically.
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 17.5m/min.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- Easy and quick changeover between different sizes of moulds.
- Pipe Corrugator and extruders are synchronously controlled.

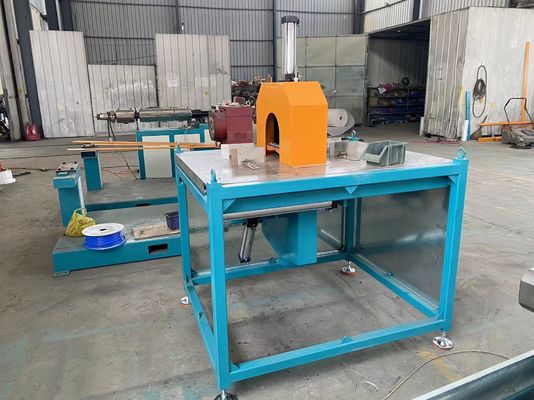

- Sawdust-free cutting, a hydraulic feed device with high precision can ensure flat and smooth cross-section of the pipes.
- The unloading device is equipped with automatic pipe weighting system.
