Product Details:
|
| Product Type: | PVC PP PE | Screw No.: | Single-screw |
|---|---|---|---|
| Mould Couple: | 40pairs | Production (m/min): | 4-8 |
| Cooling Mode: | Water Cooling | Warranty: | 1 Year |
| High Light: | Water Cooling Corrugated Pipe Extrusion Line,PVC Electric Corrugated Hose Extrusion Line,60kg/h PE Corrugated Pipe Extrusion Line |
||
PE PP PVC Electric Corrugated Hose Corrugated Pipe Extrusion Line
This machine is mainly used to produce PVC, PP, PE single wall corrugated pipes, PVC, PP, PE electric corrugated hose etc. This PVC/PP/PE corrugated pipe extrusion line adopts advanced design concept to ensure the efficient extrusion, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Technical data
| Pipe diameter range(mm) | 4.5-9 | 9-32 | 16-50 | 50-100 | ||
| Main machine model | SJ-30 | SJ-45 | SJ-65 | SJ-65 | ||
| Main machine l/d | 30: 1 | 28: 1 | 30: 1 | 30: 1 | ||
| Production capacity kg/h | 10 | 40 | 60 | 80 | ||
| Main motor capacity kw | 4 | 11 | 18.5 | 37 | ||
| Moiding machine capacity kw | 1.1 | 1.5 | 1.5 | 2.2 | ||
| Pair of modules | 42 | 35 | 35 | 35 | ||
| Cooling mode | Water cooling and fan cooling | |||||
| Production (m/min) | 6-10 | 8-12 | 8-15 | 4-8 | ||
| Metering mode | Inducting mode | |||||
Components of PE PP PVC Electric Corrugated Hose Corrugated Pipe Extrusion Line

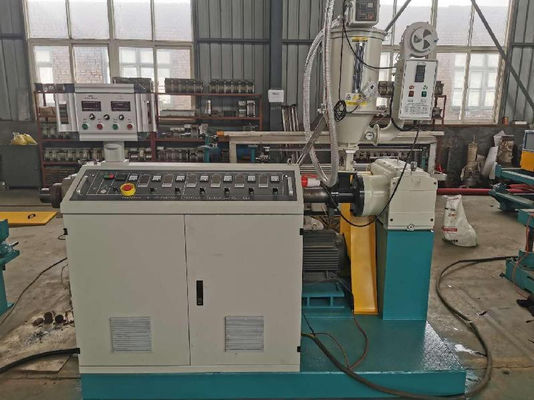

A. Single screw extruder:
Using the high efficient single screws, specially designed for plastic material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality corrugated pipe extrusion.
B. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes.

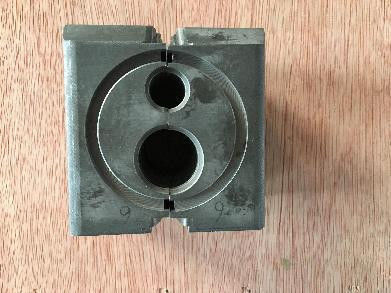

C. Forming machine with forming block:
Rapid vacuum forming system with air cooling and water cooling. The precised mould block design to make the cooling more effeciency. New design of air cooling system to inscrease the production speed.
D. Winder:
Single plate winder and double plate winder, coiling automaticly.
Equipment list of PE PP PVC Electric Corrugated Hose Corrugated Pipe Extrusion Line
| Compulsory devices | ||||
| 1 | Material charge | 1 set | ||
| 2 | Single screw extruer | 1 set | ||
| 3 | Die head | 5-100mm | ||
| 4 | Forming machine with forming block | 1 size need one set block | ||
| 5 | Coiler | Single/double plate coiler | ||
| 6 | Electrical cabinet(ABB, Omron, RKC, Schneider etc) | 1 set | ||
| 7 | Spare parts | 1 set | ||
| Optional Devices | ||||
| 1 | Color mixer | 1 set | ||
| 2 | Plastic crusher | 1 set | ||
| 3 | Industrial water chiller | 1 set | ||
| 4 | Air compressor | 1 set | ||
| 5 | Thermocontroller for die head | 1 set | ||
