Product Details:
|
| Product Type: | PE/PP | Pipe Diameter: | 20-63mm |
|---|---|---|---|
| Control System: | PLC Control System | Temperature Controller: | Omron |
| Inverter: | ABB | Warranty: | 1 Year |
| High Light: | PP Drainage Tube Extruder,63mm PVC Conduit Pipe Extrusion Line,PLC Drainage Pipe Extrusion Line |
||
PP/PE/PVC Conduit Driange Tube Extruder Single Wall Corrugated Pipe Extrusion Line
Technical Details:
Extruder type:
| Model of the single screw extruder | SJ-30B | SJ-45B | SJ-65B | SJ-90B | SJ-120B | SJ-150B |
| screw of the extruder(L/D) | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 |
| Power of the extruder(kw) | 2.2-7.5 | 7.5-22 | 18.5-55 | 55-185 | 90-280 | 110-300 |
| Heating Power (kw) | 5-8 | 6-12 | 12-18 | 16-40 | 20-60 | 30-80 |
| Cooling Style | By Fans and Water | |||||
| Max. Extruding Capacity (kg/h) | 18 | 60 | 180 | 450 | 650 | 950 |
| Model | Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| SKS12 | Φ6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| SKS32 | Φ16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| SKS63 | Φ20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| SKS80 | Φ50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
Introduction of PP/PE/PVC Conduit Driange Tube Extruder Single Wall Corrugated Pipe Extrusion Line:
This corrugated pipe production line can be used to produce single-wall or double wall corrugated pipes of PE, PP, PVC, EVA continuously, as well as PA corrugated pipes.
It calso called pvc corrugated pipe extruder/pvc corrugated pipe machine/pvc corrugated pipe production line/pe corrugated pipe extruder/pe corrugated pipe machine/pe corrugated pipe extrusion line/pe corrugated pipe production line.
The diference between single wall corrugated pipe and doulb wall corrugated pipe is the extruder quantity.
Characteristics and Application of Pipe:
Plastic corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
PP/PE/PVC Conduit Driange Tube Extruder Single Wall Corrugated Pipe Extrusion Line Features:
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.

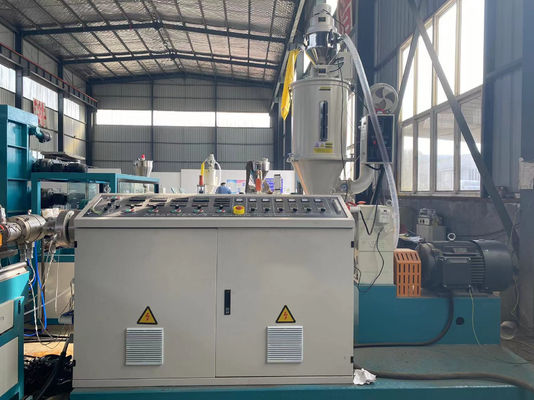

1. Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

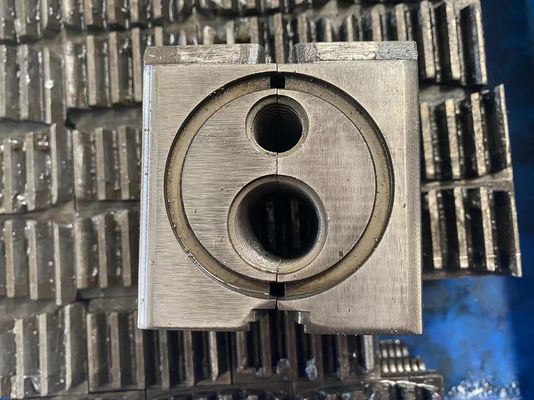

3. Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4. Coiler :Single position or double position with torque motor.
5. Electrical parts: Schneider or Delta inverter, Siemens contactor, OMRON thermo controllers etc.
Machine parts list:
1. Single screw extruder; single screw extruder for single wall corrugated pipe; double extruders for double wall.
2. Corruated pipe mold: 50-72pairs
3. Corrugated pipe forming machine
4. Winding Machine
5. Electric control cabinet.
Auxiliary Machine;
1. Haul-off Unit
2. Cutting Machine
