Product Details:
|
| Plastic Processed: | HDPE | Voltage:: | 380V 50HZ 3Phase(Customized) |
|---|---|---|---|
| Screw Design: | Single-screw | Forming Type: | Water Cooling And Air Cooling |
| Temperature Controllers:: | Omron Brand | Motor:: | SIEMENS Motor |
| High Light: | Gas HDPE Corrugated Pipe Extrusion Line,Water HDPE Corrugated Pipe Extrusion Line |
||
Plastic Extruder Water Gas HDPE PP Pipe Making Machinery Double Wall Corrugated Pipe Extrusion Line
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
HDPE (High Density Polyethylene) Double Wall Corrugated Pipes are for gravity and low pressure sewerage and drainage, such as waste water, sanitary sewer and storm sewerage for municipal or industrial use. The pipes provide important benefits and distinct advantages for sewer and drainage applications.
HDPE Double Wall Corrugated Pipe Application:
1. Rainfall and sewage drainage in municipal engineering
2. Industrial waste water and plot sewage drainage
3. Brine well transporting bittern, fishery transporting water
4. Mine ventilation and drainage project
5. Farming irrigation and drainage
6. Wall pipe of excavate project (double wall corrugated pipe with holes
7. Water conservancy project
8. Safeguard pipe of low voltage cable and communication cable
9. Expressway embedded pipe

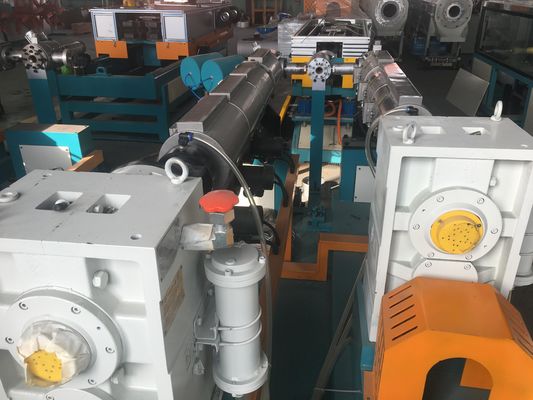

Double Wall Corrugated Pipe Extrusion Line EXtruder .
Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.
Double Wall Corrugated Pipe Extrusion Line Die Head and Calibration sleeve
Double Wall Corrugated Pipe Extrusion Line Corrugator.
Double Wall Corrugated Pipe Extrusion Line Cooling tank.
|
Diameter(mm)
|
16-40dual | 20-63dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 |
|
Extruder model
|
SJ51/105 | SJ65/132 | SJ51/105 | SJ65/132 | SJ65/132 | SJ80/156 | SJ92/188 |
|
Extruder power
|
18.5AC | 37AC | 18.5AC | 37AC | 37AC | 55AC | 110DC |
|
Max lineal speed
|
10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 |
|
Max capacity
|
120 | 250 | 120 | 250 | 250 | 350 | 800 |
We can produce perfect in-line double-layer socket whose two layers are stick together closely from the starting point. Win-Win has always been leading the technological development of corrugated pipe machine in China and has become one of mainstream suppliers of corrugated pipe machine in the international market.
1. The high-speed corrugated pipe production line with pressure water cooling system is the pioneer of high-speed corrugated pipe machine in China.
2. The company in China that successfully launched a corrugator with a mould block parking station.
3. The corrugated pipe machines can cover from OD50mm to OD2400mm.
4. The largest production line that can produce OD1800mm double-wall corrugated pipes
5. More than 200 sets of corrugated pipe production lines have been installed in more than 30 countries around the world.
6. The customer repeat-purchasing rate is as high as 90%.
