Product Details:
|
| Extruder: | Conical Twin Screw Extruder | Die Head And Molds: | 16-630mm PVC Pipe Extrusion |
|---|---|---|---|
| Screw Barrel Raw Material: | 38crmoaia | Extruder Heater: | Cast Aluminum / Ceramic |
| Vacuum Water Spray Tank: | 6 Meter Stainless Steel Making | Warranty: | 1 Year |
| High Light: | 75mm PVC Conduit Pipe Machine,Conical Conduit Pipe Making Machine,PE Conduit Pipe Machine |
||
PP PE PVC Conduit Pipe Making Machine Water Electric Supply Flexible Conduit Production Line
Plastic PE PP PPR PVC Water Pipe Extrusion Line / Corrugated Pipe Tube Hose Making Machine / Plastic Pipe Manufacturing Plant / Production Lin
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc

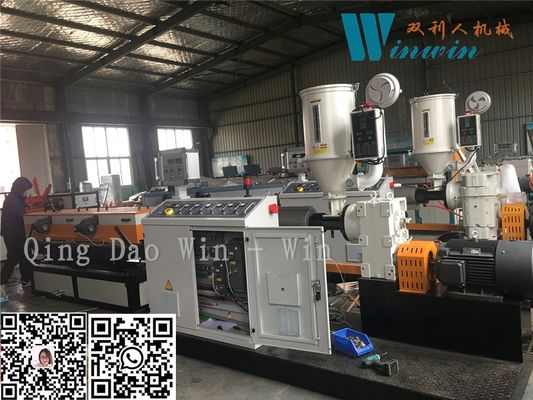

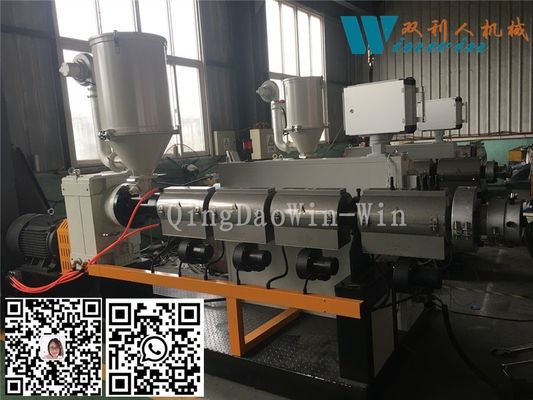

PP PE PVC Conduit Pipe Making Machine Water Electric Supply Flexible Conduit Production Line Single Screw Extruder
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system
PP PE PVC Conduit Pipe Making Machine Water Electric Supply Flexible Conduit Production Line Sing Pipe Vacuum Tank
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.
PP PE PVC Conduit Pipe Making Machine Water Electric Supply Flexible Conduit Production Line Hual off units
Technical Parameters of PVC Pipe Extrusion Line
|
Pipe dia. (mm) |
16-63 |
75-160 |
125-250 |
180-315 |
200-450 |
355-630 |
|
Vacuum tank length(m) |
6 |
6 |
6 |
9 |
9 |
9 |
|
Pressure of vacuum |
0.03-0.80 |
|||||
|
Max hauling force(N) |
10000 |
15000 |
20000 |
25000 |
30000 |
50000 |
|
Hauling speed(m/min/max) |
10 |
6 |
4 |
3 |
2 |
1.4 |
|
Refilled water volume (m3/h) |
5 |
6 |
7 |
8 |
9 |
12 |
|
Production Line |
20 |
22 |
30 |
30 |
36 |
42 |
