HDPE Carbon Spiral Pipe Making Machine Plastic Pipe Production Line

HDPE Carbon Spiral Pipe Making Machine Plastic Pipe Production Line

The HDPE Carbon Spiral Pipe Making Machine Plastic Pipe Production Line is suitable for the high speed extrusion of HDPE, LDPE, and PP material.

It adopts high speed high efficiency single screw extruders directly extruding forming technology, special structure die head, forming stably. Corrugator adopts horizontal structure with chain type transmission. Aluminum alloy mold blocks equipped with open water cooling system and advanced self-lubrication system to improve production speed greatly. The whole production line adopts Germany Siemens professional PLC control system, high automation, reliable running, and easy operation.

Descriptions of HDPE Carbon Spiral Pipe Making Machine Plastic Pipe Production Line:

This extrusion line is mainly used for producing PE/HDPE carbon spiral reinforced pipe. PE carbon spiral pipe production line is a kind of plastic pipe equipment used to produce PE carbon spiral pipe. The plastic pipe production line synthesizes and modifies materials such as polyethylene and carbon, and is spirally formed by an extrusion process. PE carbon spiral pipe It has the advantages of PE plastic and carbon material, and has the characteristics of flame retardancy, insulation, strong ring stiffness, and good pressure resistance.

Application of the pipes:

PE carbon spiral pipe has a broad market application field, such as: used in construction, chemical industry, miners, agricultural irrigation, water conservancy, electric power and other fields, especially in the current development of power infrastructure in my country, a large number of wires and cables are buried in the ground, carbon Plain spiral tube is an irreplaceable product.

Advantages of HDPE Carbon Spiral Pipe Making Machine Plastic Pipe Production Line:

The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face. The helix apportionment style different body and big flow space assure the melting material has enough stay time. Optimal low melting temperature result in little internal pipe stress, smooth inner and outer pipe surfaces.Unique sizing and cooling mode is capable of producing pipe scope 50-200 mm,production speed is up to 0.6~1.5 m/min

Extruder

• Adopt high-efficiency single-screw extruder, SJ65 or SJ75, use famous and qualitied electric brand like SIEMENS, ABB, OMROM, SHNEIDER, whick is long lift time .
• Die head from ID 50-200mm, thickness 1-3mm, we can provide drawing for molds according to customer samples
• Die head can wearing wire according to customer requirement.

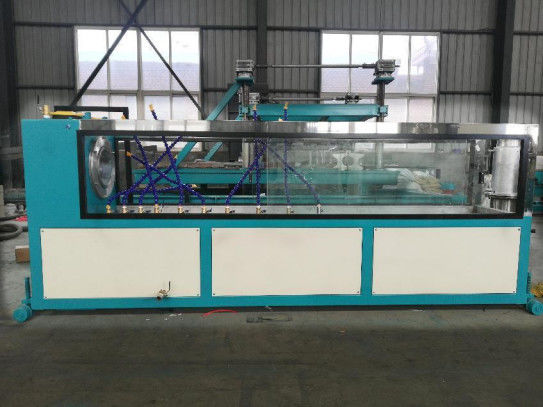

Water tank

• Form of vacuum sizing box: stainless steel box, 3 mm thick, all parts in contact with water are made of stainless steel, the whole process is vacuum, and there are windows on both sides.
• Number of nozzles (pieces): 18.
• Water supply method: centralized water supply.
• Vacuum pump power: direct-connected water-ring sealed vacuum pump 3KW (1 set)
• Vacuum degree (MPa): 0~0.09MPa.
• Water pump power and origin: Water pump: 2.2KW.
• Shaft linkage between the setting table and the spray box: the geared motor drives the screw to move the setting box.
• Mobile motor power 0.75KW.

Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry. Our products have passed ISO9001-2000 quality certification system, CE certification, SGS certification and gost certification of CIS countries.
If you need plastic extrusion equipment, please feel free to contact me!
