Communication Pipe Machine Micro Duct PE Silicone Core Pipe Production Line

Communication Pipe Machine Micro Duct PE Silicone Core Pipe Production Line / Making Machine / Extruder Line

HDPE Communication Tube And Bundle Pipe Making Machine / Extrusion Line
   HDPE Communication pipe machine have two system, one is HDPE microduct tube extrusion line, one is HDPE communication bundle pipe extrusion line. And the bundle pipe could be spiral corrugated pipe (COD pipe) or polygon pipe system.
Machinery equipment List:

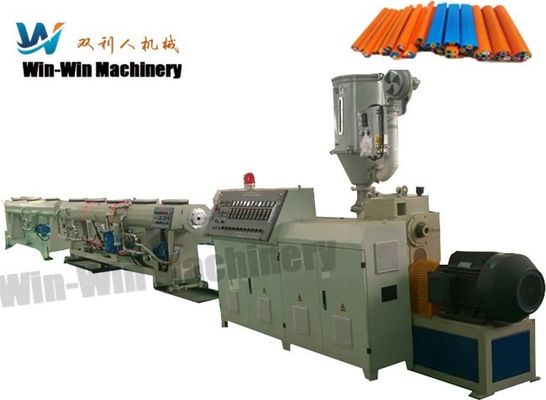

1. Core pipe system include: Automatic feeder, SJ65/33 Extruder. SJ25/25 Markline extruder, Core pipe die, Vacuum tank, water tank, haul-off machine, coiler
2. Bundle Pipe system include: Uncoiler for core pipe, guiding device, coating die, 65/33 Extruder, Vacuum tank, haul off machine, coiler

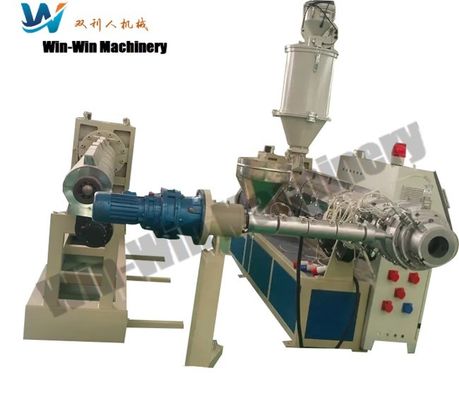

Single Screw Extruder

There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system

Core Pipe Unwinding Unit

It is working for small core pipe unwinding

Pipe Extrusion Die head

The die head is made by 40Cr moulds materials.
Using mica heating way
It could be do coating with 2 way, 3way,4way,5way,7way etc.

Water cooling tank

it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.

Pipe Water Tank

It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.

Winding Machine

It adopts torque motor control unit, max winding 1km to 5km according customer request

Haul off unit

It could be rubber belt or rubber block clamping way.
