Product Details:
|
| Customized: | Customized | Application: | PVC Window Profile |
|---|---|---|---|
| WPC Line: | WPC Profile Machine | Power (kW):: | 185 |
| Showroom Location:: | Italy, Viet Nam, Philippines, Russia | Control System:: | PLC |
| Speed:: | 1.2-4.5m/min | Forming Type:: | Vacuum |
| High Light: | Color Pattern Double Screw Extruder,WPC Pallet Double Screw Extruder,PLC Double Screw Extruder Machine |
||
Color Pattern Double Screw Panel Composite WPC Pallet Loading Board Floor Outdoor Decoration Material Extruder
PVC WPC door frame machine adopts SJSZ special exrtuder , energy saving and high efficiency . The 8-meter calibration platform can fully cool the door frame . PVC WPC door frame is fully mixed with wood poeder fiber and plastic . It has physical and mechanical properies comparable to hardwood , such as compression resistance and bending resistance , and its durability is obviously better than ordinary wood materials . High surface hardness , generally 2-5 times that of wood.
Performance and characteristics of PVC wood-plastic door cover production line:
1. The barrel adopts aluminum casting heating ring heating and air cooling system to cool down, and the heat transfer is fast and even.
2. Different screws can be selected according to different formulas to achieve plasticizing effect.
3. The reduction box and distribution box use bush bearings, imported oil seals, and gears are made of alloy steel and nitrided.
4. Design of reduction box and distribution box, reinforced thrust bearing, large transmission torque and long service life
5. The vacuum sizing table adopts an enlarged vortex cooling system, which is convenient for cooling and setting. The special three-position adjustment control of horizontal tilt control makes the operation simple and convenient.
6. The tractor adopts lifting technology, upper and lower crawler back pressure control, stable operation, high reliability, large traction, automatic fixed-length cutting, and dust recovery device.
7. The main and auxiliary electrical appliances all adopt imported components to ensure the stability and reliability of the machine under long-term continuous operation.

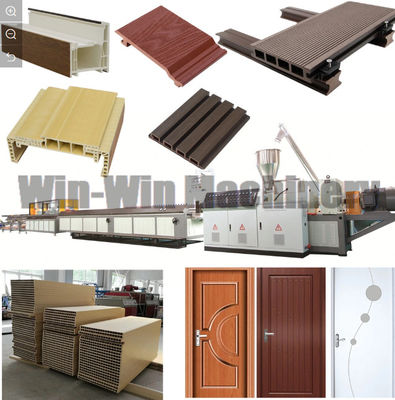

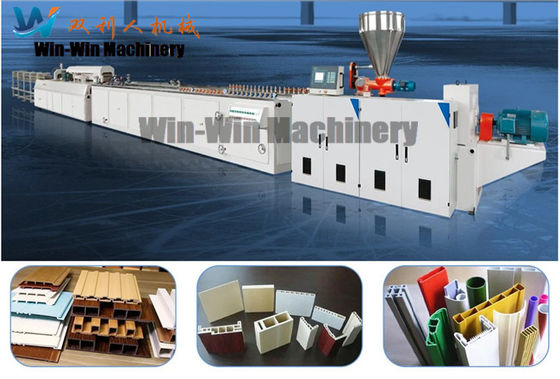

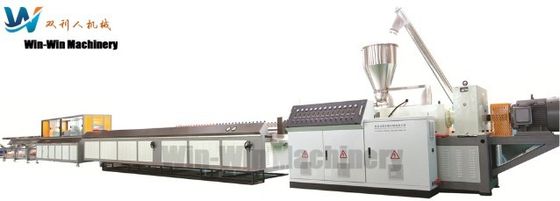

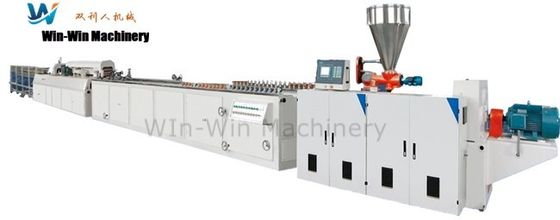

More Pics About Our Machine:
Information And Pictures About Productions Of The PVC ceiling wall panel making machine
|
Machine Model |
Production Width |
Production Thickness (mm) |
Production Capacity |
Total Power |
|
SJSZ55/120 |
200-300mm |
8 |
120-150 |
70 |
|
SJSZ65/132 |
600mm |
8 |
150-180 |
95 |
pp/pe/pvc wood plastic wpc profile production line /pvc extrusion machine is suitable for producing PP PE PVC WPC profiles in all shapes. The products are widely used for pallet, packaging plate, floor, and out door decorating materials, widely application.
|
Technical parameter |
|||||
|
Model |
YF180 |
YF300 |
YF600 |
YF800 |
YF1000 |
|
Max.width of product(mm) |
180 |
300 |
600 |
800 |
1000 |
|
Extruder mode |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
|
Extrusion capacity(kg/h) |
150 |
180 |
360 |
360 |
600 |
|
Motor power(kw) |
22 |
37 |
55 |
55 |
110 |
|
Total length(m) |
18 |
22 |
26 |
28 |
32 |
1.Our WPC machine has features of low consumption,low noise,stable running..
2.This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine
can produce wpc products with different shapes.
Flow Process
1.PE/PP+wood extrusion line craft:
Wood milling(wood powder,rice husk)-- Mixer(plastic+wood)--Granulator--Wpc extrusion line+Auxiliary
2.PVC+wood extrusion line craft:
Wood milling(wood powder,rice husk)--Mixer(plastic+wood)--Wpc extrusion line+Auxiliary
Technical Specification of SJSZ55/120 PVC Wood Door Profile Prodcution Line
1.Main technical parameters:
2.Detailed specification of the line:
1. SJSZ-55/120 conical twin screw extruder one set
2. Mould one set
3.Vacuum calibration unit one set
4.Hauling off machine one set
5.Horizontal Cutting machine one set
6.Stacker one set
1. Main technical parameters:
1. Suitable material: PVC&Wood
2. Output Capacity
|
Extruder Model |
Extrusion Material |
Extruder Output Capacity |
|
SJSZ-55/120 |
PVC+Wood+other material |
120-150kg/h |
The output capacity varies with the materials and the operation conditions.
Product specification:
Width 300mm
Thickness 8mm
The height of the centerline of the extruder: 1000mm
Power: as per customers power.
2.Detailed specification of the line:
SJSZ55/120 conical double screw extruder
Screw: Two stage unique design effects, with low temperature plasticization concept.
Barrel: barrel is made of special steel alloy, and is equipped with ceramic heater band with air cooling system.
Motor: AC motor, with CE standard. Controlled by ABB Inverter.
Control system: Adopt selected high quality and famous brand products from Europe, and Japan manufactures. Machine works more stable and longer working-period.
Gearbox: gears are made of steel alloy with heat treatment and are finished with surface precision grinding. It designed with low noise when operating under high RPM and enhances the life span of gears.
Automatic loader:
