Product Details:
|
| Product Type: | PE | Pipe Diameter: | 50-200mm |
|---|---|---|---|
| Screw Type: | Single Screw | Customized: | Customized |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Carbon Spiral Pipe Making Machine,200mm Spiral Pipe Making Machine,75/30 Conduit Pipe Production Line |
||
HDPE Carbon Spiral Pipe Making Machine PE Corrugated Conduit Pipe Production Line
Equipment List
| NO. | Description | QTY | Unit | remarks |

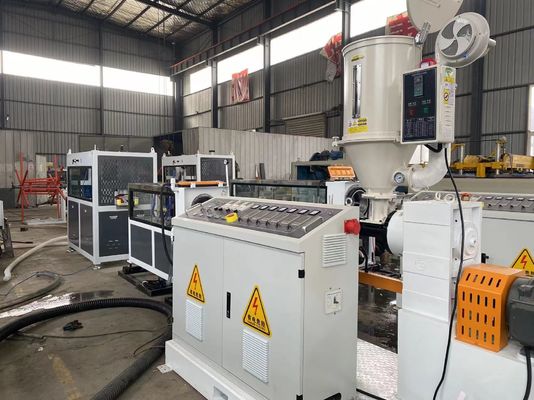

| 1 | SJ-75/30 Single Screw Extruder | 1 | set | 30kw motor |
| 2 | Die Head Mold | 1 | set | chrome inside |
| 3 | core bar and mouth mold | 1 | set | for each size nose |
| 4 | Forming Mould (60pairs) | 1 | set | 40cr, Nitriding |
| 5 | Pipe Forming Machine | 1 | set | air&water cooling |
| 6 | Pipe cutter machine | 1 | set |
HDPE Spiral pipe extrusion line pe pipe making machine
Carbon fiber pipe from PE carbon sprial pipe plastic machine substitute of cast iron pipe, rubber pipe, widely used in irrigation. And the PE Carbon Fiber Pipe has following features:
1.First, mixing PE material symmetrically, and feeding into extruder hopper, then melting and plasticizing material by extruder, then extruded out by die and head, finally, forming final PE carbon fiber pipe by cooling, sizing, haul-off and winding.
2.Has the advantages of high strength, high toughness, anti-corrosion, light weight, and long life;
3. A substitute of cast iron pipe, rubber pipe and PVC pipe;
4. It is widely used in such fields as irrigation (draining and feeding water), protecting the surface of cable, ventilation, exhaust, etc.
Introduction of HDPE Carbon Spiral Pipe Making Machine PE Corrugated Conduit Pipe Production Line
Qingdao Win Win Machinery has been dedicated to the production of HDPE Spiral pipe extrusion line since 1999. We have SJ70,75,90 single screw extruder, which are ideal machines for producing pipes with high output, stable quality and advanced technology.
The company also offers a wide range of other plastic machinery
such as cable shealthing pipe machine and drainage pipe extrusion machine.
This highly efficient equipment is capable of producing various sizes
and shapes of HDPE Spiral pipe extrusion line in accordance to customer's requirements.
The whole process is automated from material feeding to finished product delivery, ensuring maximum efficiency while minimizing labor costs.
With years of experience in the industry and excellent after-sales service,
Qingdao Win WIin Machinery provides customers with reliable products that meet their demands for quality assurance at competitive prices. Whether you need a small or large scale project, our team will work closely with you to customize solutions that fit your specific needs perfectly.
Features of HDPE Carbon Spiral Pipe Making Machine PE Corrugated Conduit Pipe Production Line:
Single screw extruders especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.
• The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce with smooth inside and outside face.
• All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded for various uses, 80% of recycle material can be used in production;
• Optimum spiral copper sizing sleeve, its entrance carrying pre-cooling and powerful vacuum device to suit for high speed extruding pipe.

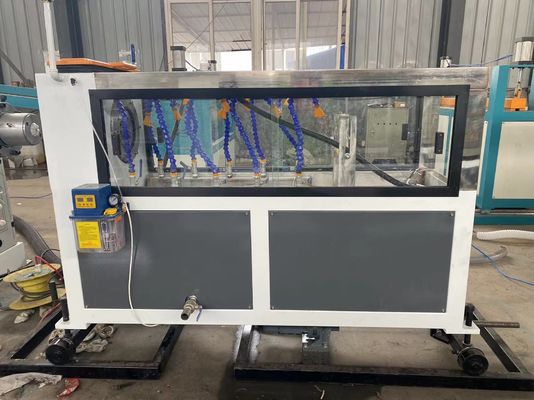

• Specific design for spray cooling trough.
• Cooling water trough is made of stainless steel
• High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
• Three-dimensional regulation, longitudinal move by motor.
• Advanced co-extrusion technology and low cost to use recovery material.
Our Advantages
Multi-functions
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
