Product Details:
|
| Product Type: | PE | Screw Type: | Single Screw |
|---|---|---|---|
| Specification: | 75-110MM | Speed: | 1-4m/min |
| Max. Capacity: | 135kg/h | Warranty: | 1 Year |
| High Light: | Flexible Corrugated Pipe Extrusion Line,70/33 Pipe Extrusion Line,HDPE Double Wall Pipe Extruder |
||

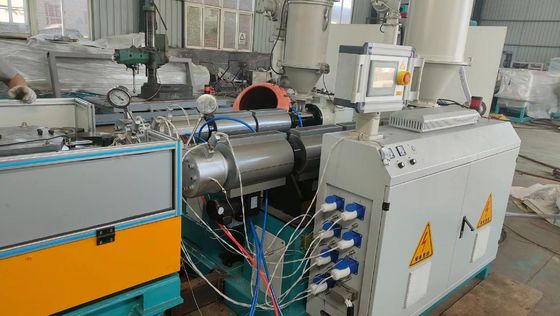

Flexible Plastic HDPE Fresh Air Double Wall Corrugated Pipe Extrusion Line/Making Machine/Equipment
Technical conditions:
| 1,Power supply | 380v/3P/50Hz | |||
| 2,supply Material | HDPE | |||
| 3,Capacity of extrusion | ||||
|
Model |
Material |
Max. capacity |
Remarks |
|
| SD SJ-70×33 | HDPE | ≥135kg/h | Pipe Extrusion | |
| SD SJ-50×30 | HDPE | ≥60kg/h | Pipe Extrusion | |
| 4,Spec of pipe | φ:75-90-110mm | |||
| 5,Speed of line | 1-4m/min | |||
| 6,Central height of extruder | 1000mm | |||
| 7,Operation direction | from right to left | |||
| 8,Cooling cycling water | ≤20℃ ≥0.3Mpa ～10T/h | |||
| 9,Compressed air: | 0.4m3/min ＞0.5Mpa | |||
| 10,Total power | 101.5kw(Actual consumption70.5kw) | |||
| 11,Dimension | 15*5*2m | |||
Fresh air double wall corrugated pipe consist of:
1,Single screw extruder 2 sets
2,Die head and mould
3,Forming machine
4,Mould block
5,Recoiler
Application: Mainly used for indoor fresh air convey duct production , also called fresh air pipe production line.

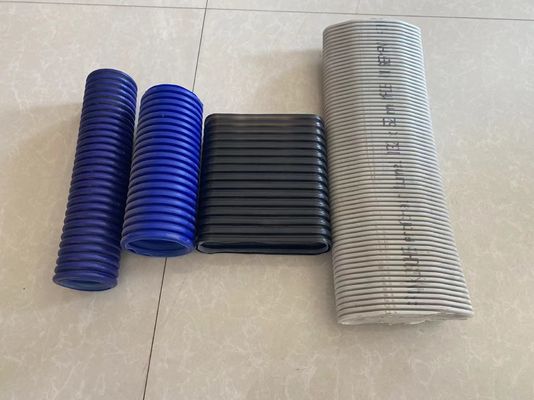

Fresh air pipe feature: Flexible and high strength, inner surface smooth, outside surface corrugated appearance, beautiful and practical.
Brief introduction of ventilation pipe:
Ventilation exhaust pipe is more environmentally friendly than PVC;
PE bellows for ventilation, special for fresh air, soft silencer, environmental protection and no pollution;
Diameters: 40-110MM, 75-200MM(or customized);
Flexible Plastic HDPE Fresh Air Double Wall Corrugated Pipe Extrusion Line/Making Machine/EquipmentApplication:
HDPE / PP double wall corrugated pipe is widely used as cable protection pipe, fresh air ventilation pipe,cable ducting and etc.. The company absorbs foreign advanced technology, independent research and development of the HDPE double wall corrugated pipe production line, with a number of patented technologies. Our new high-speed PE double-wall corrugated pipe production line, the use of new high-performance single-screw extruder, forming machine using horizontal structure, shuttle drive, sealed water-cooled, auto recoiling, high degree of automation, stable operation, large output.
Mould block use innovate design that inner can be aluminum to cooling temperature fast. The bank of mould block is 45# steel which is anitcorrosion during running.
Our Advantages
Multi-functions
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
