PVC Double Wall Corrugated Pipe Production Line Extruder Machine

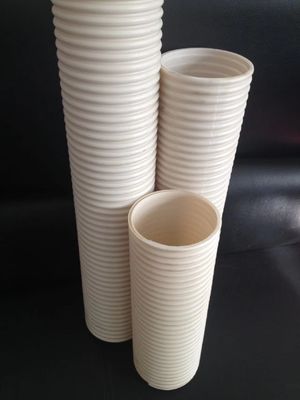

PVC Double Wall Corrugated Pipe Production Line Extruder Machine is our company collection for many years of experience in manufacturing corrugated pipe equipment, on the basis of absorbing foreign advanced technology and manufacturing processes, well designed developed. It is not afraid of acid, corrosion resistance and good sealing, no water seepage, high ring stiffness, friction coefficient, anti-aging, anti-electric erosion, softness and good features. Applications for wires, cables threading pipe, washing machine drains, vacuum cleaner tubes, ventilation tubes, etc.
Main technical parameters:
Main machine name |
SJ-30/25 |
SJ-45/25 |
SJ-65/25 |
SJ-90/25 |
Die block(couple) |
40 |
42 |
42 |
42 |
Production pipe range:(mm) |
Φ4-10 |
Φ4-10 |
Φ20-63 |
Φ50-160 |
Production speed(m/min) |
5-10 |
3-15 |
2-8 |
0.3-8 |
Output |
8 |
30 |
60 |
80 |
Machine features:
1, Adopt to PLC control system it is more accurate more intellectualize control order makes the operation more simple.
2, The production line is the single screw extruder in high efficiency, has the independent water and air circular system and form the double wall corrugated pipe by cooling water and compress air.

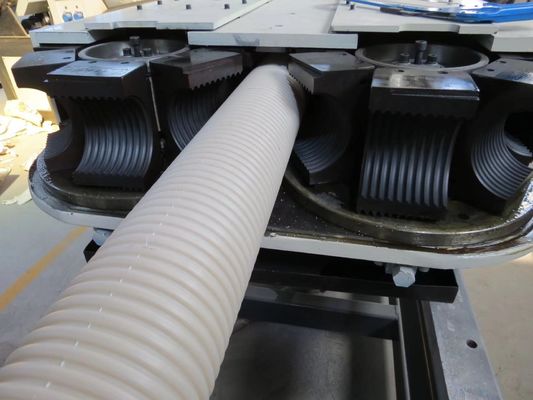

3, Corrugated forming system with strong cooling ability operation more simple efficiency;
4, The mould surface is nitrided, has the adjust equipment to adjust the wall thickness, it suitable for different diameters pipes.
5, Extruder has air cooling and water cooling function.
Our Advantages
- Always upgrade new technology
We are continously to making development on new technology and new designing always. this keep our machine technolgy level standing in front of of the world level.
We focus machine quality , energy saving , operating easy and convenient maintenance.
- We consider different buyers' different request, try our best to meet your satisfy!
Multi-functions
Our machine can make steel wire passing hose on line when producing the hose.
Our machine can make 1-9 pieces electric cable passing hose when producing the hose.
Our machine can make plastic pipe passing the hose on line when producing the hose
We also have vacuum type machine, which can make special shape hose , and high speed producing.
- Strong machine using long life
Our machine total weight is higher than other manufacturer 30% , because we are using very strong material.
Our machine use high quality famous brand electric parts like SIEMENS, OMRON, ABB
Plastic corrugated flexible pipe making machine
plastic single wall corrugated pipe extrusion line can produce PP/PE/PVC/EVA/PA corrugated pipe.Mould Chain adopts gear transmission,base plate adopts water cooling,mould adopts air cooling.
Corrugated pipe produced by our machine has the features of high production speed,even corrugated shape,straight pipe seam,and smooth surface. By equipped with vacuum pump and vacuum type mould,it can produce different use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe,hookah pipe etc.)
Extrusion line for the production of single-wall and double wall corrugated tubes and pipes made of PE, PP, PVC, PA, EVA, PVDF, TPE etc.
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
