Product Details:
|
| Condition: | New | Automation: | Automatic |
|---|---|---|---|
| Customized: | Customized | Screw No: | Multi-screw |
| Waranty Time: | 1 Year | Speed: | Normal Or High Speed |
| High Light: | 75mm Screw Corrugated Pipe Machine,33L/D Corrugated Pipe Machine,100KW Corrugated Pipe Machine |
||

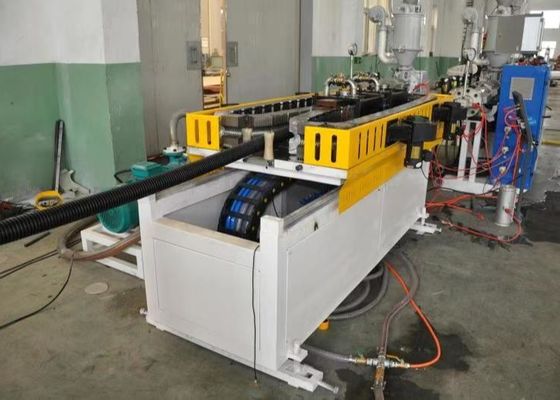

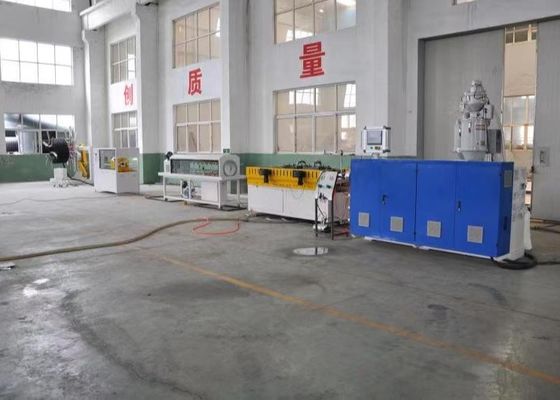

Single Wall 75mm Screw Corrugated Pipe Machine 33L/D Extrusion Line
| Type | Screw Diameter(mm) | L/D | Power(KW) | Pipe Size(mm) | Hauling Speed |
| JWDPG-63 | 75 | 33 | 100 | 90-160 | 5 |
| JWDPG-25 | 65 | 33 | 80 | 50-75 | 10 |
| JWDPG-10 | 45 | 30 | 45 | 6-10 | 20 |
Single Wall 75mm Screw Corrugated Pipe Machine 33L/D Extrusion Line can produce two diameters or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the mould blocks and reduce the time for changing the mould blocks, increase the efficiency. The pipe from this machine is anti-high temperature, anti-wear, and high strength, and it is widely used in electrical conduct, car conduct pipe, protective pipe, machine area and automatic meter area. With Jwell special design screw and advanced mould, the line is high speed, run stable and easy-control.
Single Wall 75mm Screw Corrugated Pipe Machine 33L/D Extrusion Line adopts advanced technology of Europe, it is a new research achievement of energy-saving production line, which is suitable for high speed extrusion of HDPE, PP and other polyolefin pipe. Compared with common production line, the energy saving effect reach on 35%, and the product efficiency Increase more than 1 times, thus it is not only saving the cost of site and manpower, but also improving efficiency. Single Wall High Speed Corrugated Pipe Forming Machine/ Corrugated Pipe Extrusion Line has nice appearance, higher automatic degree, production reliable and stable.
Single Wall 75mm Screw Corrugated Pipe Machine 33L/D Extrusion Line features:
1. The extrusion lines equipped with two extruders for two layer co-extrusion, stable extrusion, excellent plasticization.
2. Imported ratio-adjusting valve adjusts forming pressure stable and reliable.
3. Double flow channel spiral composite extrusion die head. The surface is Nitrided and polished.
4. Thickness regulating device for double wall.
5. Double wall belling on line.
6. Working table is three-dimensionally adjustable.
7. Automatic protection system starts and working table comes back when power off.
8. Automatic lubrication station.
9. Mould blocks are made of special aluminium alloy and features right weight, high strength, good wear resistant.
10. Air cooling and water cooling for well cooling corrugated moulds that forming pipe at higher speed.
11. The complete line adopts PLC micro-computer control system which can visually shows melt temperature and pressure, forming speed, error alarm and also has storage capacity of basic process.
12. High efficiency singe screw extruder (using granule material) and energy- saving twin- screw extruder(using powder or granule material) for your choice.
13. Vertical horizontal o Horizontal corrugators for your choice.
