Dia 50mm PVC PP Corrugated Pipe Extrusion Line Water Cooling 20m/Min

High Speed PVC PE Single Wall Corrugated Pipe Extrusion Line for Making The Electric Wire Sheath

High Speed PVC PE Single Wall Corrugated Pipe Extrusion Line for Making The Electric Wire Sheath can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine. The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.


High Speed PVC PE Single Wall Corrugated Pipe Extrusion Line for Making The Electric Wire Sheath is used to produce plastic single wall corrugated pipe by plastic granule materials.This kind single wall plastic corrugated pipe extrusion line adopts advanced design concept to ensure the efficient extrusion, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

High Speed PVC PE Single Wall Corrugated Pipe Extrusion Line for Making The Electric Wire Sheath Included:

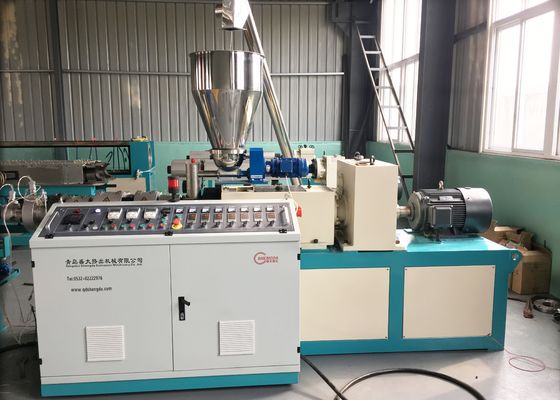

1. Single screw extruder:
High efficient single screws, specially designed for plastic material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality corrugated pipe extrusion.
2. Extrusion Mould:
High quality design die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes.

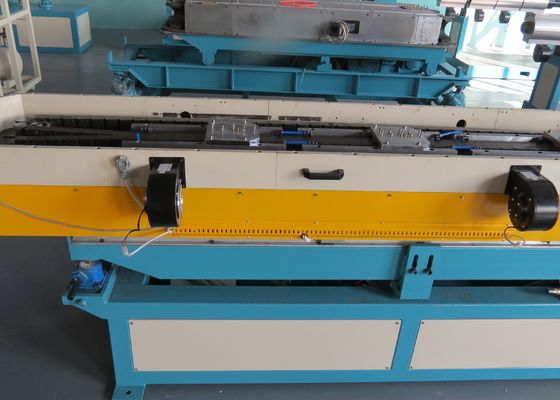

3. Forming machine with forming block:
Gear driven system with 100% water cooling system.It is adopted track working method to ensure 20-30m/min speed. High precision forming block ensure a better surface of the corrugated pipe. Blowing and vacuum system is optional according customers request.

1. HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance.

plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
production technology with the intellectual property. It can produce pipe size from Ø200~Ø4000mm
which is widely used in fields of civil water drain, wastewater drain.

2. The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.
1) The investment is lower and the automatic control system is easy for operation and maintenance.
2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Schneider/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 4000mm.

3. The features of PE Spiral Corrugated Pipe:
1) Light weight-per-meter
2) Belling link, tight cementation
3) Pressure against, high strength
4) Anti-frozen and long service life (50 years )
5) Convenient construction
