Product Details:
|
| Production Capacity: | 80-100 Kg/ H | Production Speed: | 8-15m/Min |
|---|---|---|---|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
| Condition: | New | Automation: | Automatic |
| High Light: | 32mm Single Wall Corrugated Pipe Extrusion Line,10mm Single Wall Corrugated Pipe Extrusion Line,32mm plastic corrugated pipe machine |
||
10-32mm PE/PP Plastic Single-Wall Corrugated Pipe Production Line
| Pipe diameter | 4-12mm | 10-32mm | 25-65mm | 50-110mm |
| Extruder | SJ-30/28 | SJ-45/30 | SJ-65/30 | SJ-90/30 |
| Capacity | 8-15kg/h | 40kg/h | 120kg/h | 250kg/h |
| Speed of production line | 1-12m/min | 1-10m/min | 1-8m/min | 1-5m/min |
| Quantity of mould block | 38 pairs | 38 pairs | 38 pairs | 50 pairs |
10-32mm PE/PP Plastic Single-Wall Corrugated Pipe Production Line Description:
1. The PVC, PE single wall corrugated pipe production line shall be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
3. End produces can be used as wires and cable passing pipes, washing machine drain pipes, dust collector pipes and ventiducts.
3) Application:They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine etc.
4) Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
10-32mm PE/PP Plastic Single-Wall Corrugated Pipe Production Line Feature:

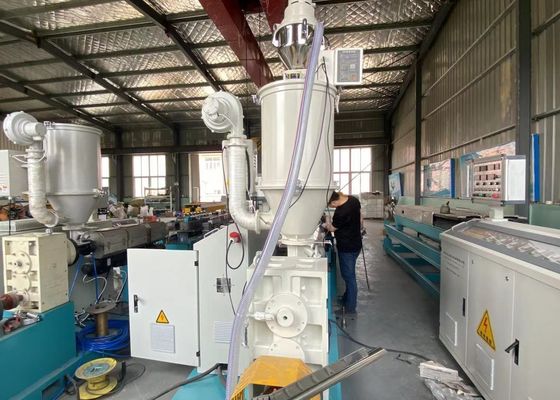

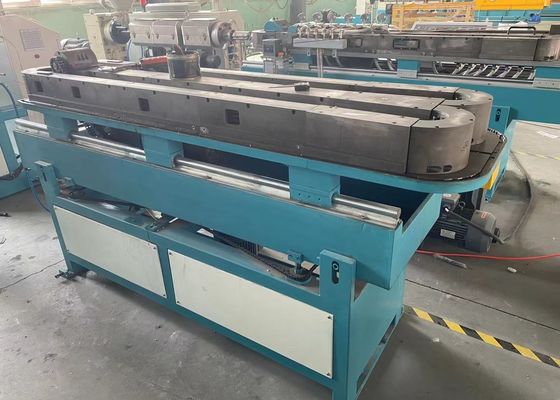

It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is
ultraviolet resistant.
Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is
ultraviolet resistant.
PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder
Application:
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.
