Product Details:
|
| Output (kg/h): | 30 - 80 Kg/h | Screw L/D Ratio: | 33:1 |
|---|---|---|---|
| Screw Speed (rpm: | 1500 Rpm | Voltage: | 220-415V |
| Warranty: | 1 Year | Condition: | New |
| High Light: | EVA Single Wall Corrugated Pipe Extrusion Line,PA Single Wall Corrugated Pipe Extrusion Line,PE pvc pipe manufacturing machine |
||

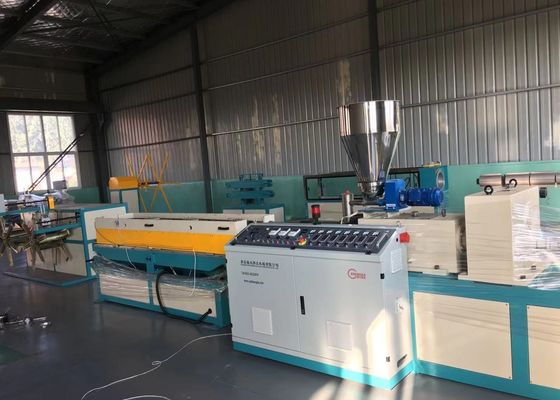

PP PE PVC EVA PA Plastic Single Wall Corrugated Pipe Extrusion Line
| Extruder Model | Pipe Diameter | Production Speed | Main Motor Power | Mold Block Quantity |
| SJ45/28 | 5-14mm | 6-8min | 7.5kw | 42pairs |
| SJ50/30 | 10-32mm | 5-12m/min | 15kw | 50 pairs |
| SJ65/30 | 16-50mm | 4-10m/min | 22kw | 50 pairs |
| SJ65/30 | 16-63mm | 4-10m/min | 30kw | 50pairs |
| SJ65/33 | 32-110mm | 2-8m/min | 37kw | 72 pairs |
| SJ75/30 | 50-160mm | 2-5m/min | 45kw | 72 pairs |
Description of PP PE PVC EVA PA Plastic Single Wall Corrugated Pipe Extrusion Line
PP PE PVC EVA PA Plastic Single Wall Corrugated Pipe Extrusion Line can be used to produce corrugated pipes of PE, PP,EVA, PVC, PA continuously. Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility,etc. They are widely used in fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective of lamps and lantern wires, tubes of air conditioner and washing machine etc.
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc. Applications:plastic single wall corrugated pipe making machine can produce electrical thread-passing pipes,circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.
Characteristics and advantages

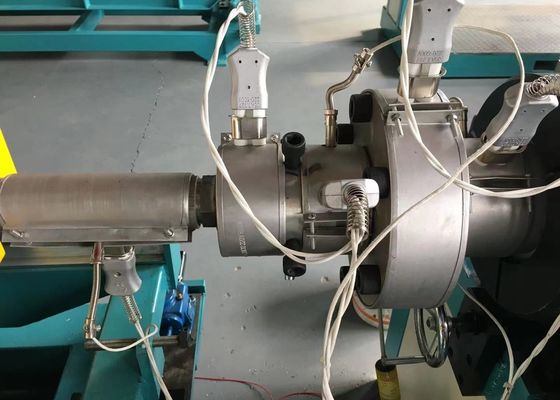

1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .
2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .
Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.
