10-20 M/Min PVC PE PP Single Wall Corrugated Pipe Machine

10-20 m/min PVC PE PP Single Wall Corrugated Pipe Extrusion Line

The line shall be used to produce small diameter single wall corrugation pipe in PVC, PP and PE raw material.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die;
Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct;
Small size corrugation pipe of 4-6.7 are used in car.

10-20 m/min PVC PE PP Single Wall Corrugated Pipe Extrusion Line Description:

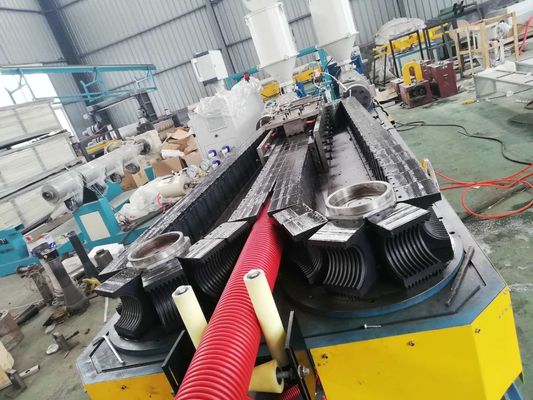

It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ltraviolet resistant.
Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Application:
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.

Process Flow:

Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder


10-20 m/min PE Single Wall Corrugated Pipe Extrusion Line Production Line Feature:

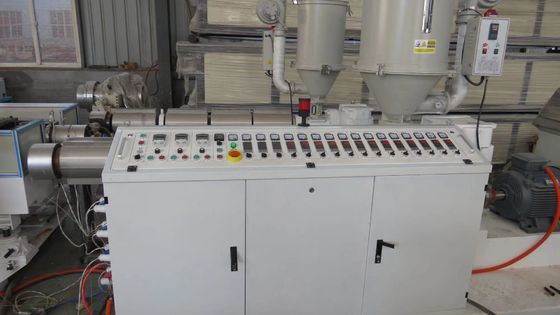

PE adopts single screw extruder, making good effect of plasticizing disperse and high output;
The die head of single wall corrugated pipe is specially designed for wide use scope, simple forming and even pipe wall;
The cutting machine is specially designed for corrugated pipe for high precision cutting and no-damage to crest.

Our company is a professional manufacturer of various composite plastic pipe extrusion line and high-speed machine set for plastic pipe. Our machine has passed the CE certification, and our plastic machinery are sold to South Asia, Southeast Asia, east Europe, Mideast, Africa, South America and more than ten countries and regions. We provide the high quality products and perfect after service, so we have hundreds of regular customers in these areas.
