Product Details:
|
| Application: | PIPE | Screw No: | Single-screw |
|---|---|---|---|
| Motor: | Siemens | Inverter: | ABB |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 50mm Single Wall Corrugated Pipe Extrusion Line,12mm Single Wall Corrugated Pipe Extrusion Line,50mm Single Wall Corrugated Pipe machine |
||
Dia 12-50mm Single Wall Corrugated Pipe Extrusion Line Making Machine
Dia 12-50mm Single Wall Corrugated Pipe Extrusion Line Making Machine developed by us is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.
| Model | Diameter of pipe | Power of main motor |
| SJ55 | 12-50mm | 15KW |
| SJ65 | 40-110mm | 30KW |
| SJ75 | 50-160 mm | 55KW |
| SJ90 | 90-250 mm | 90KW |
| No. | Name |
| 1 |
Single-screw or twin-screw extruder with automatic loading device |
| 2 | Mould |
| 3 | Corrugated forming machine |
| 4 | Haul-off machine |
| 5 | Cutting Machine |
| 6 | Winding machine |

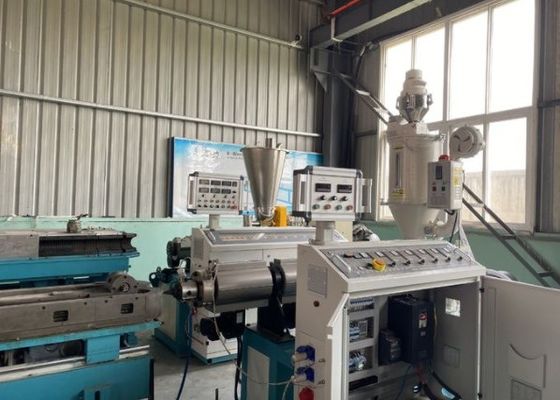

1. Single-screw or twin-extruder extruder (with automatic feeding machine)
According to the requirements of different diameters and different output of pipes, we have many models of special single screw
extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize the raw material and
extrude pipes.
(1) Motor: Siemens brand
(2) Inverter: ABB brand
(3) Contactor: Siemens brand
(4) Temperature controller: Omron brand
(5) PLC: Siemens brand
(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.

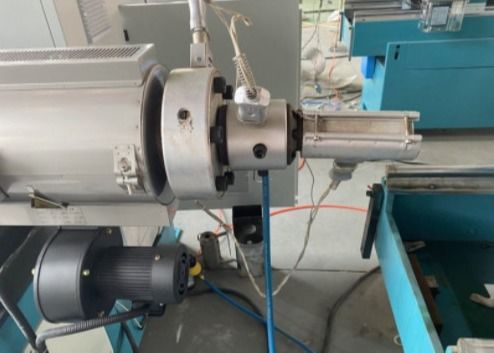

2. Mould
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of
the pipe is good.
(1) Extrusion mould material: 40Cr.
(2) Calibration mould material: Wearable tin bronze ZQSn5-2-5.
(3) Size: Customized
3. Corrugated forming machine
The corrugated formig device can calibrate and cool the pipe from the mould.
(1) Structure Horizontal.
(2) Guide track material is 40Cr.
(3) Block seat material is 40Cr, nitrided.
(4) AC motor: 2.2KW x 1 set.
(5) Blocks is cooled by air cooling fan.
4. Haul-off machine
The haul-off machine can transport pipe.
(1) Haul-off method: By belts and caterpillars tracks.
(2) Haul-off speed: 1-20 m/min.
(3) Adopt ABB inverter.
(4) Pressing method: Pneumatic pressing.
(5) Effective clamping length:1200-2800mm.
5. Cutting machine
(1) Type: Knife cutting machine and Planetary cutting machine.
(2) Cutting power: 2.2/3/4/6.9kw
(3) PLC control system, using meter counter or sensor switch for the setting of desired length.
6. Winding machine
It uses the delicate and exact meter counting and code setting unit.
Torque Motor:4-6N/M or customizable.
Dia 12-50mm Single Wall Corrugated Pipe Extrusion Line Making Machine Application areas:
Used for wire protection at railways, engines, traffic system engineering, air-conditioners various machineries, power plants, chemical industries, power distribution system, vessels, mansions, factory buildings as well as the outdoors’ exposed locations.
Dia 12-50mm Single Wall Corrugated Pipe Extrusion Line Making Machine Usage:
Protecting wires/cables and providing insulation, waterproofing as well as beautiful outlook of the wiring.
