Product Details:
|
| Screw Channel Structure: | Deep Screw | Control: | PLC |
|---|---|---|---|
| Output (Kg/H): | 90Kg/H | Voltage: | 380V/220V |
| Cooling Way: | Water Cooling | Application: | Pipe |
| Condition: | New | Corrugation Pipe Line: | Automatic |
| High Light: | 90Kg/H Single Wall Corrugated Pipe Extrusion Line,HDPE Single Wall Corrugated Pipe Extrusion Line,90Kg/H corrugated pipe extrusion machine |
||
90Kg/H 16-63mm PE PP HDPE Single Wall Corrugated Pipe Extrusion Line
Technical Parameter of 90Kg/H 16-320mm PE PP Single Wall Corrugated Pipe Extrusion Line:
| Model | Pipe Diameter (mm) | Motor Power(kw) | Speed (m/min) | Max .Output (kg/h) | Total Power(kw) |
| SJ-45X30 | 5-15 | 15 | 1-20 | 45 | 35 |
| SJ-50X30 | 16-32 | 18.5 | 1-15 | 90 | 55 |
| SJ-65X30 | 40-63 | 37 | 1-10 | 120 | 70 |
Description of 90Kg/H 16-63mm PE PP HDPE Single Wall Corrugated Pipe Extrusion Line:
Introduction of 90Kg/H 16-63mm PE PP HDPE Single Wall Corrugated Pipe Extrusion Line
It consists of automatic feeding system/single screw extruder/die head/forming machine /winder. It is mainly produce PE/PP/PVC single corrugated pipe. The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.
Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength. The pipe can be used as oil pipe in automobile braking system, and for high temperature gas, chemical liquid transferring.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Machine's Features:
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.
Machine parts list:

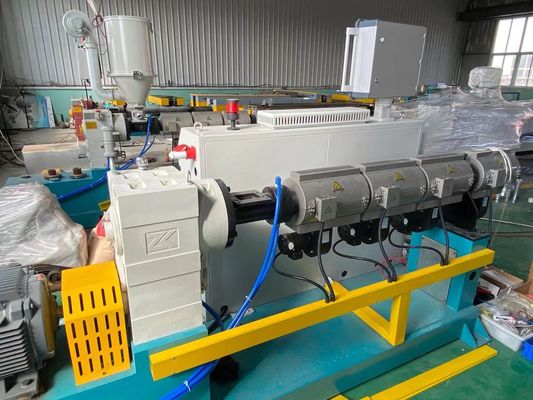

1. Single screw extruder: SJ-45/30, 65/30
2. Corruated pipe mold: 50-72pairs
3. Corrugated pipe forming machine
4. Double station winder
5. Electric control cabinet.
